SLOPING SYSTEMS

QUICK-PITCH


QUICK-PITCH STANDARD KIT

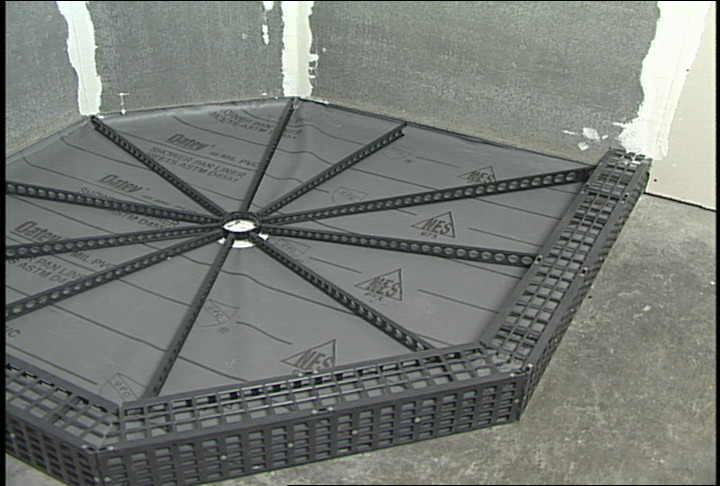

The Standard kit is where every Quick-Pitch floor starts. A Center Ring sits around the drain, and the tapered float sticks slot into it and run out to the walls. Pack mortar between the sticks and screed (level it off) across their tops, and the floor comes out at the right slope every time. It fits most showers, with walls up to 36 inches from the drain in any direction, and works with every waterproofing method.

Key features
  • Built-in pitch sets the recommended slope, with no special skills needed
  • Center Ring holds the sticks in place around the drain
  • Lightweight, reinforced plastic that won’t rot
  • Works with every waterproofing method
What’s included
  • 6 tapered float sticks
  • 1 Center Ring
  • Complete instructions
Specifications
  • Stick size: 1 in. to 1 3/4 in. tapered × 36 in. long
  • Slope: 1/4 in. per foot
  • Best for: walls up to 36 in. from the drain in any direction

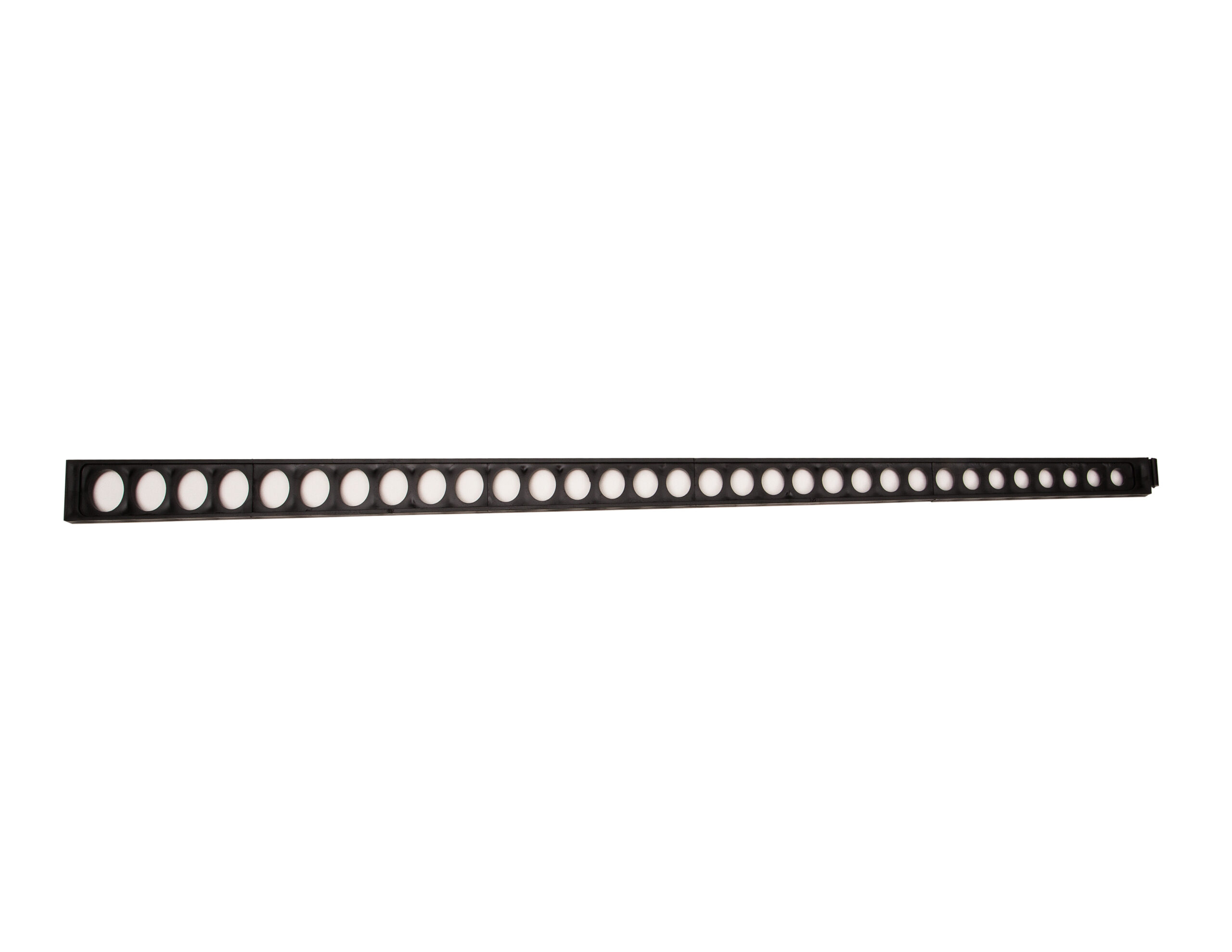

Quick-Pitch Extra Float Stick KIT

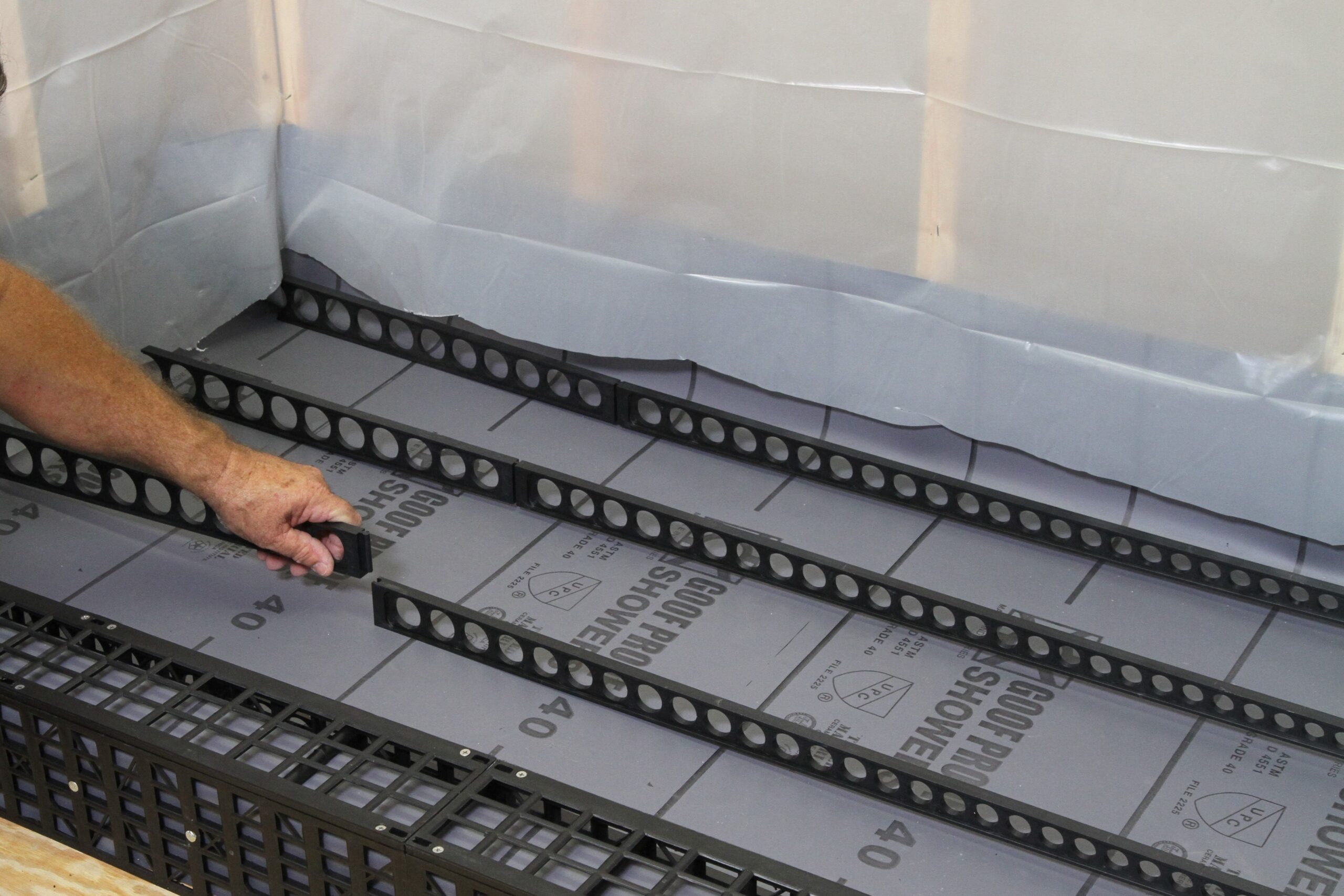

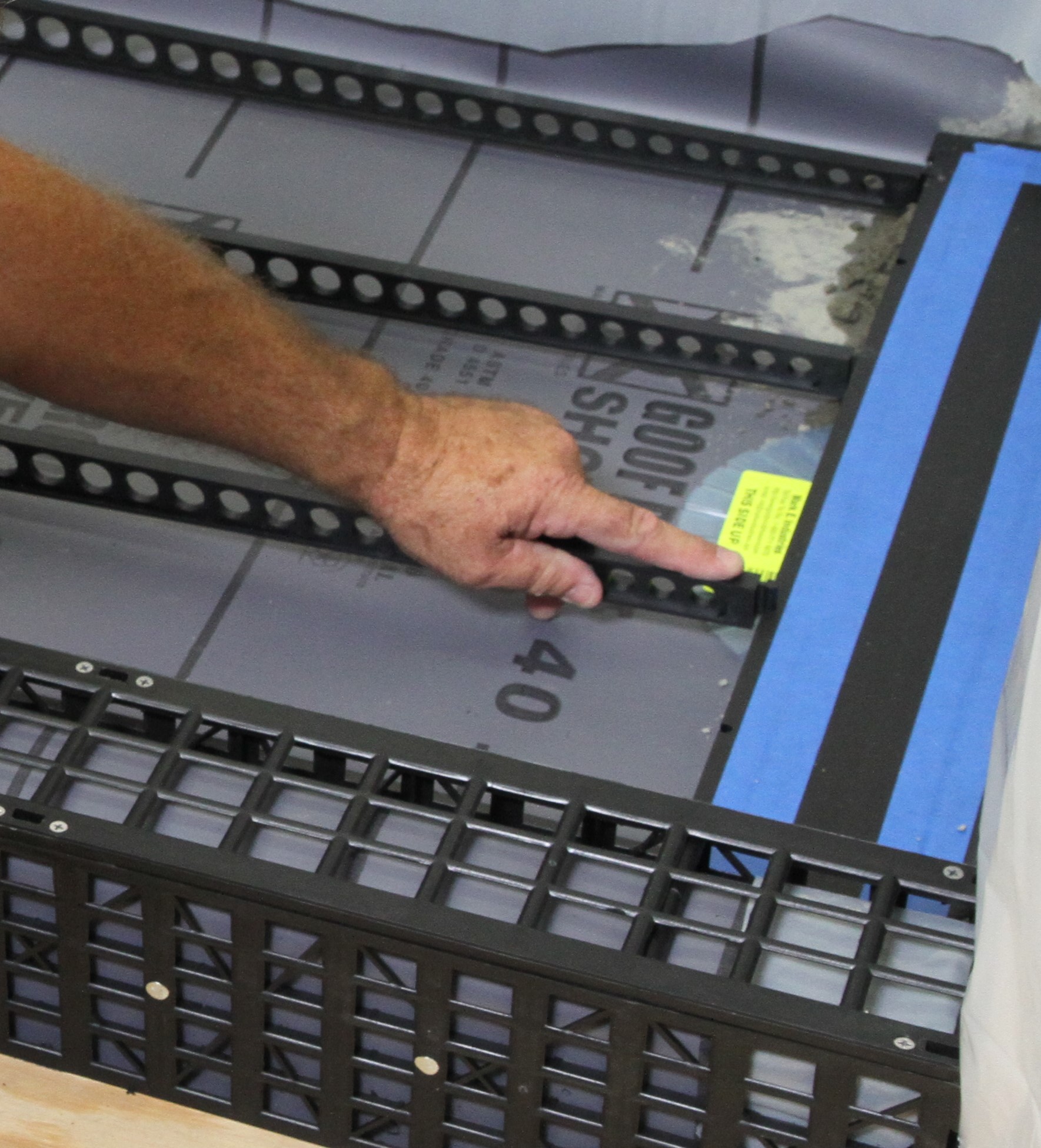

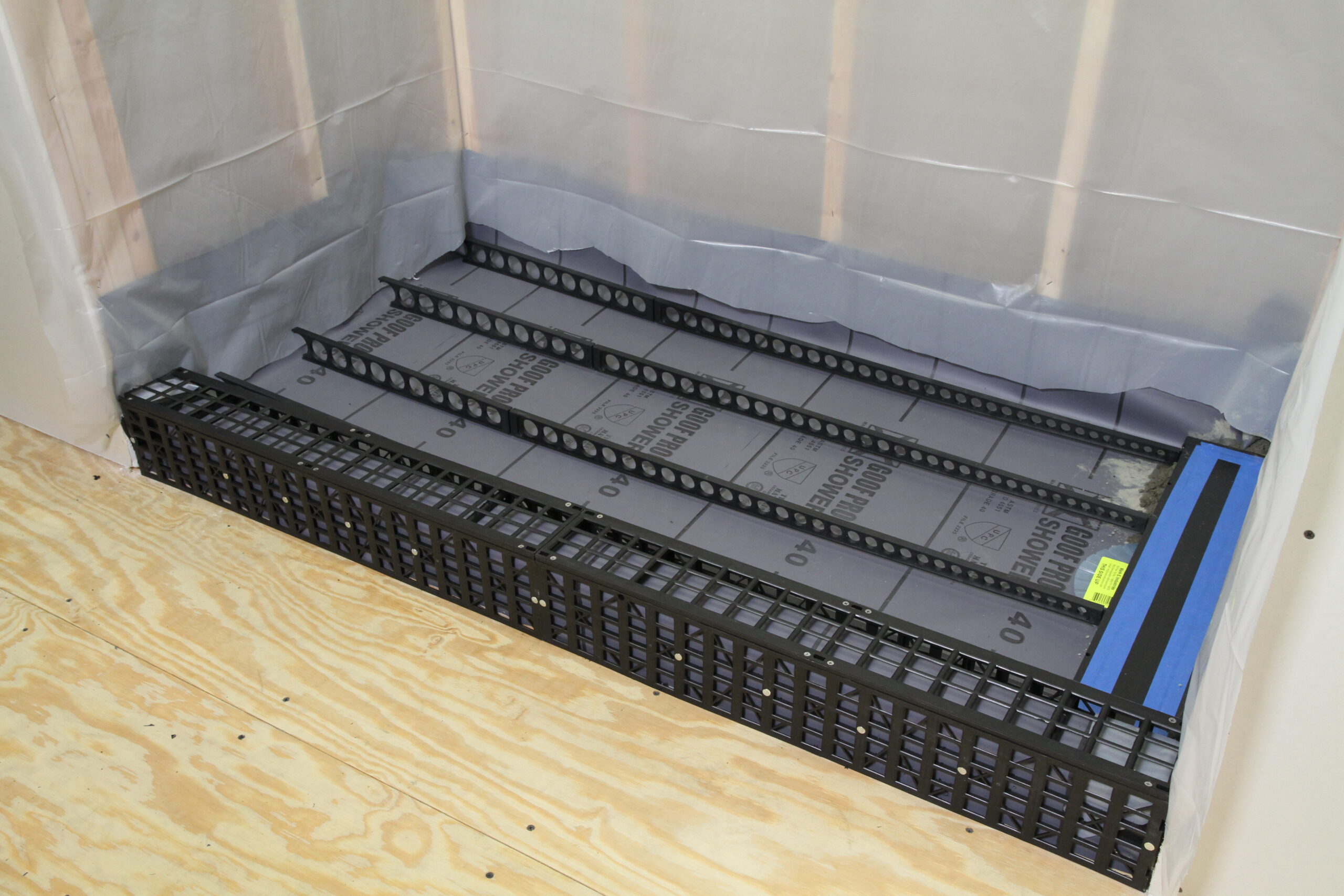

An add-on pack of the same sticks that come in the Standard kit. Add them when you’d like more sticks or have an irregular, odd-shaped shower. They also replace the Standard kit in linear drain showers, where there’s no Center Ring.

Key features
  • Same sticks as the Standard kit
  • For irregular, odd-shaped layouts
  • Replaces the Standard kit in linear drain showers
  • Works with every waterproofing method

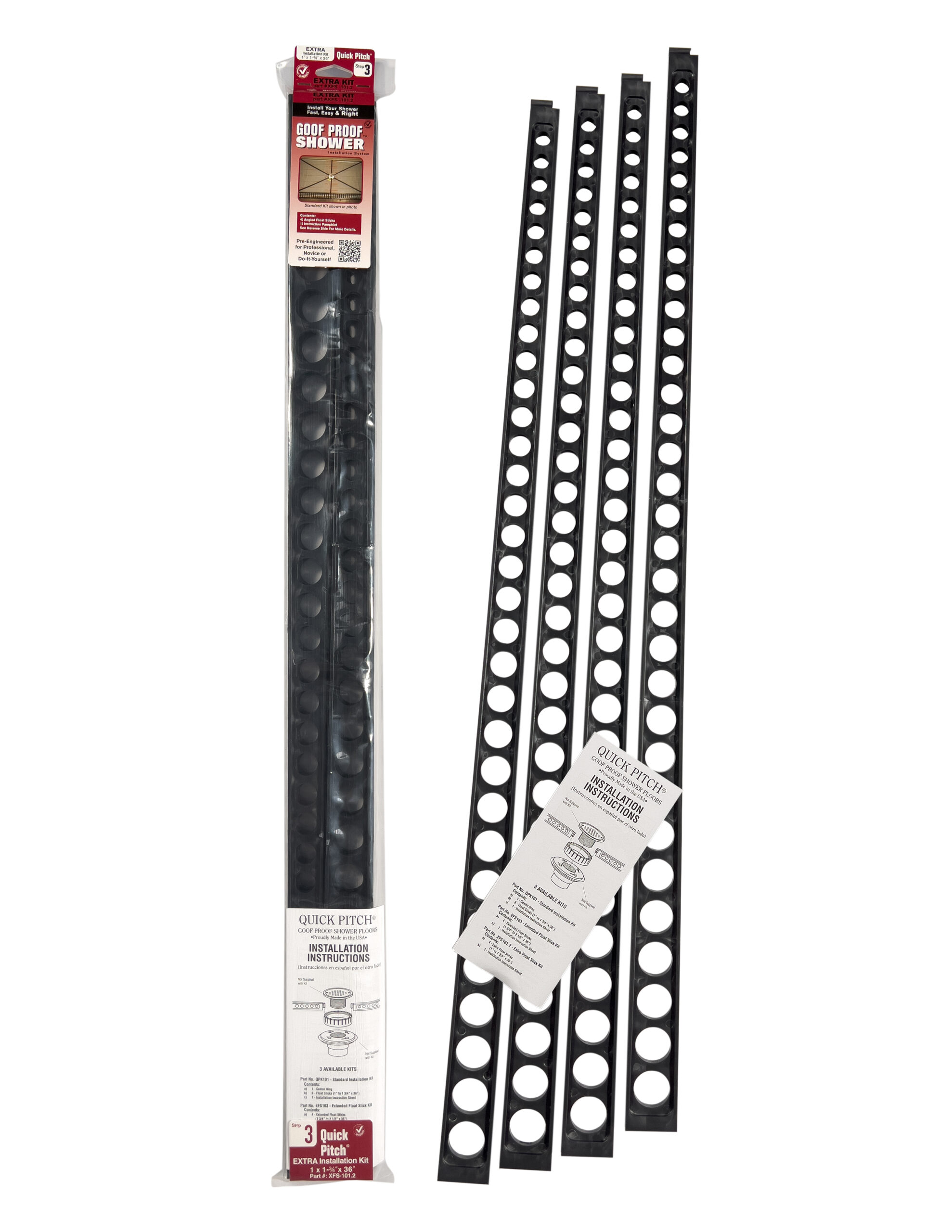

What’s included
  • 4 tapered float sticks
  • Instructions
Works with
  • Quick-Pitch Standard Kit (QPK-101), or on its own in linear drain showers

Specifications
  • Stick size: 1 3/4 in. to 2 1/2 in. tapered × 36 in. long
  • Best for: walls more than 36 in. from the drain
  • Continues from: 36 in. to 72 in. from the drain

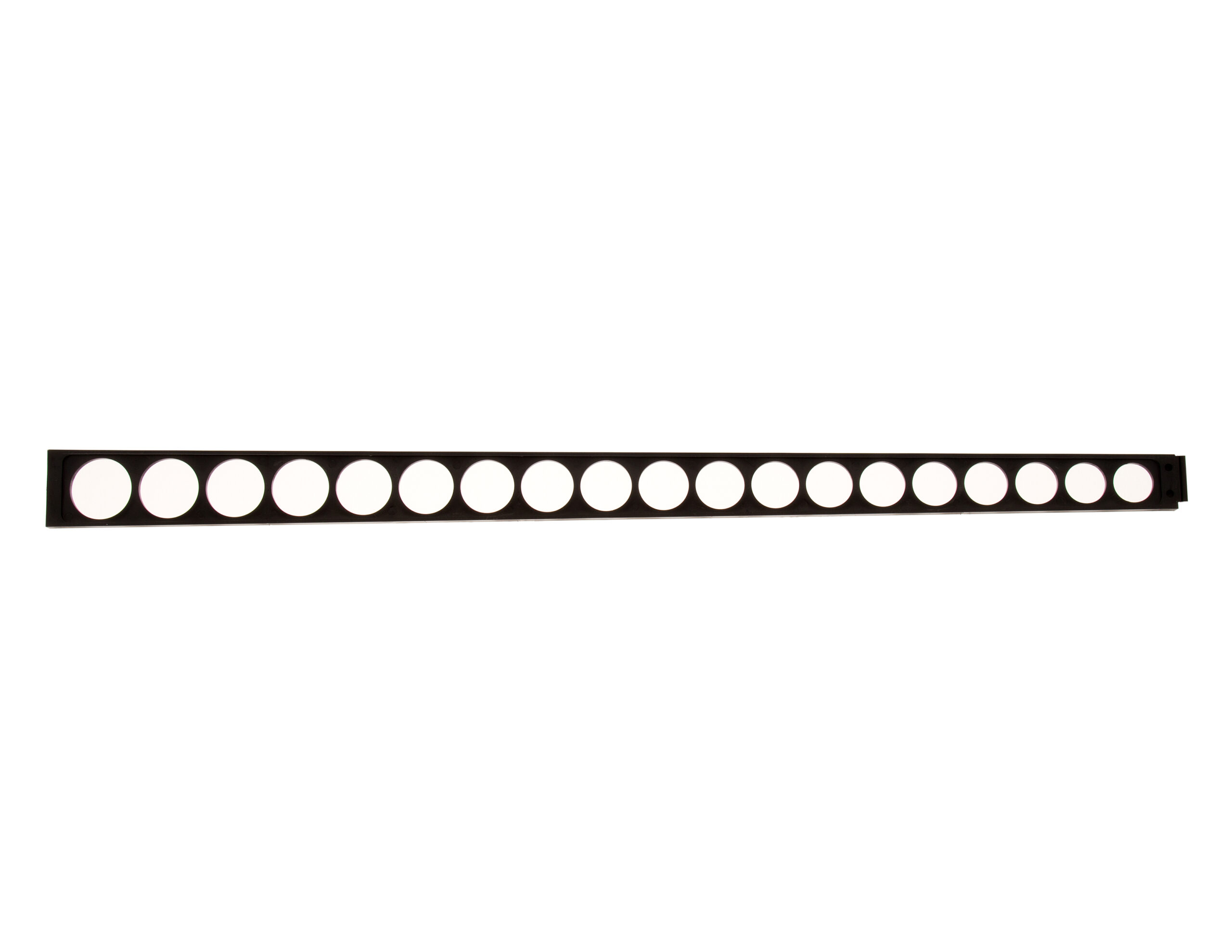

QUICK-PITCH EXTENDED FLOAT STICKS

An add-on that picks up where the standard sticks leave off. Each stick continues the same slope from 36 inches out to 72 inches from the drain, for larger shower floors. Cut them to the length you need.

Key features
  • Continues the slope seamlessly out to 72 in.

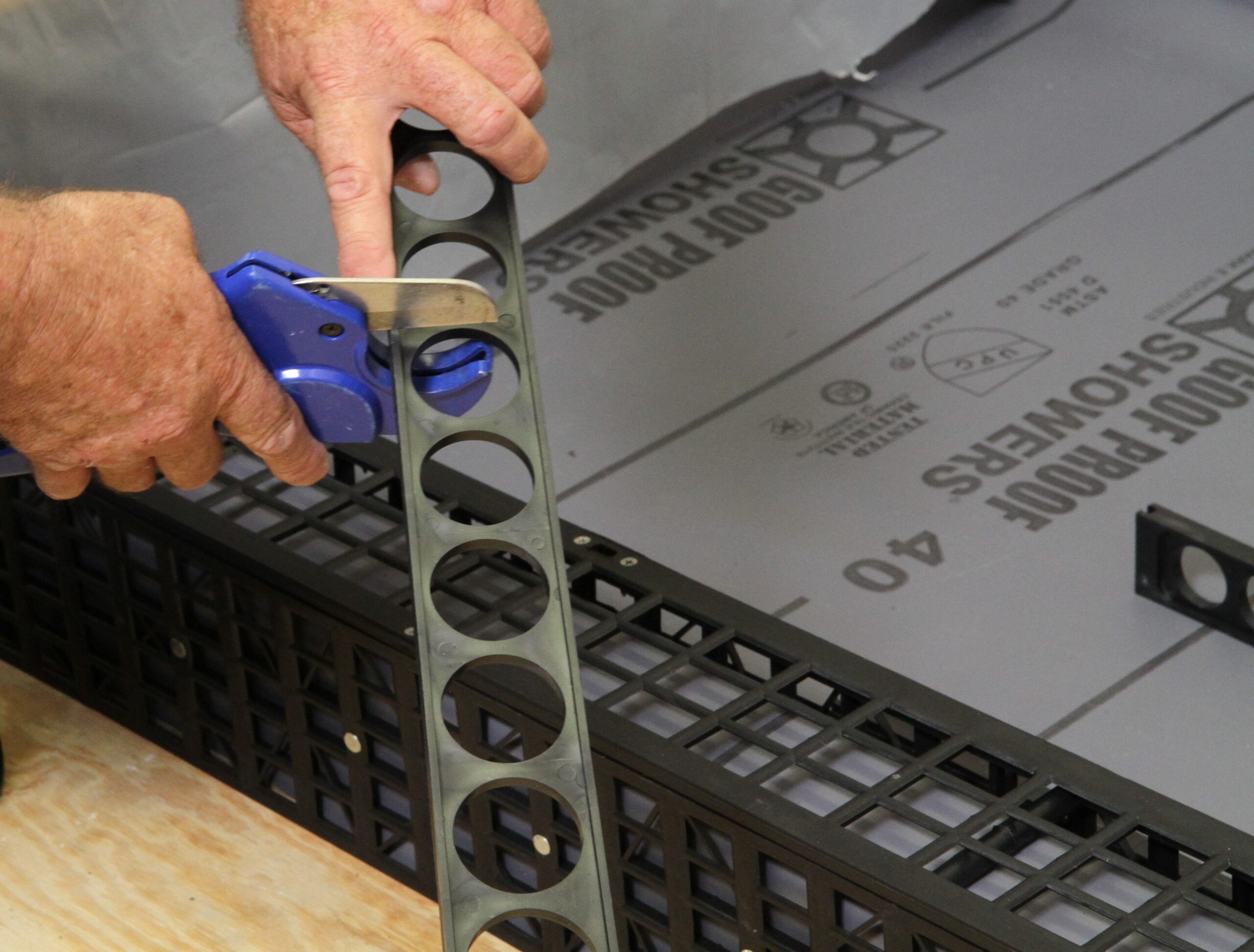

  • Easy to cut to length
  • Built-in pitch, with no special skills needed
  • Lightweight, reinforced plastic that won’t rot

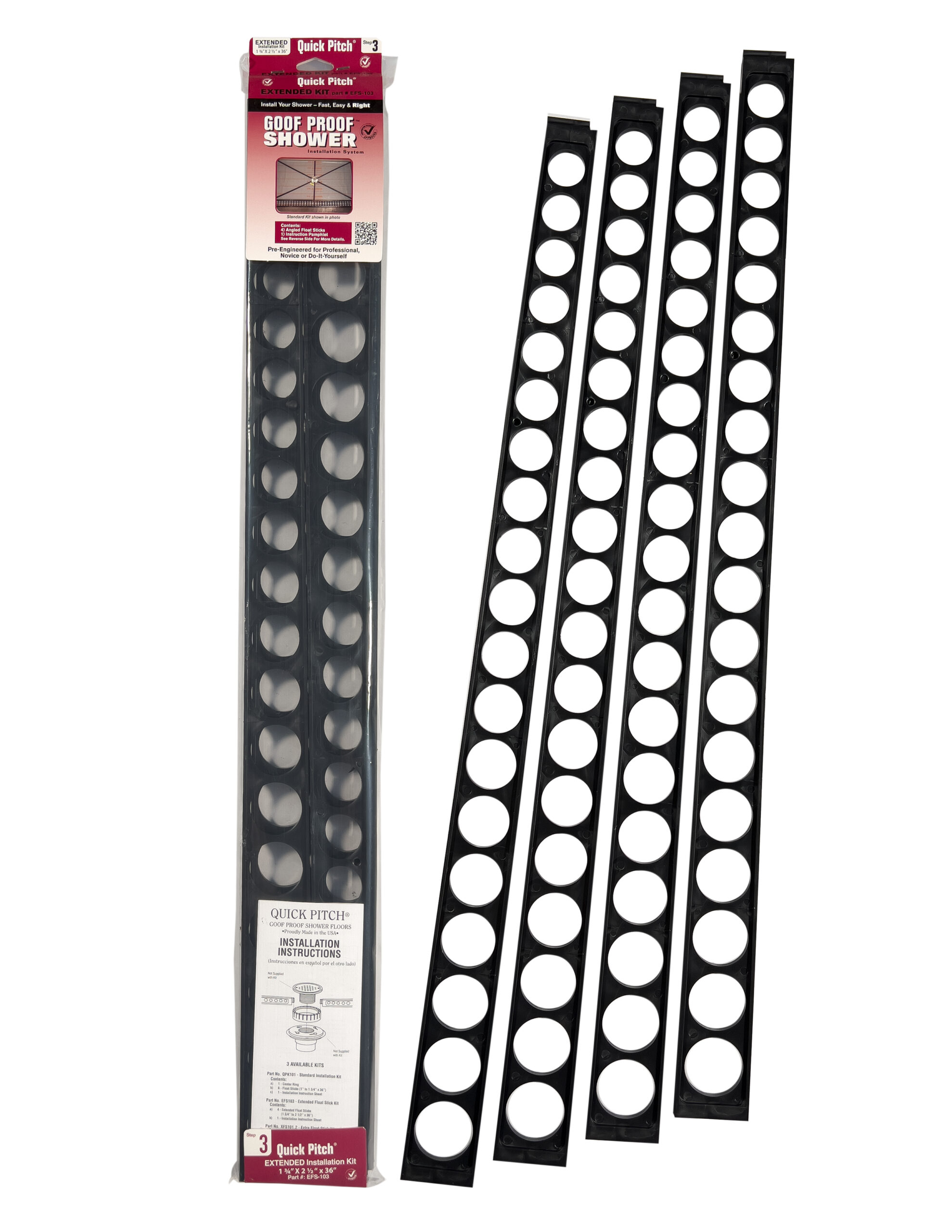

What’s included
  • 4 tapered Extended sticks
  • Instructions
Works with
  • Quick-Pitch standard 36 in. float sticks (attaches to the end of the stick)

Specifications
  • Stick size: 1 3/4 in. to 2 1/2 in. tapered × 36 in. long
  • Best for: walls more than 36 in. from the drain
  • Continues from: 36 in. to 72 in. from the drain
How It Works

Three steps to a perfectly sloped floor

01

Set the center ring

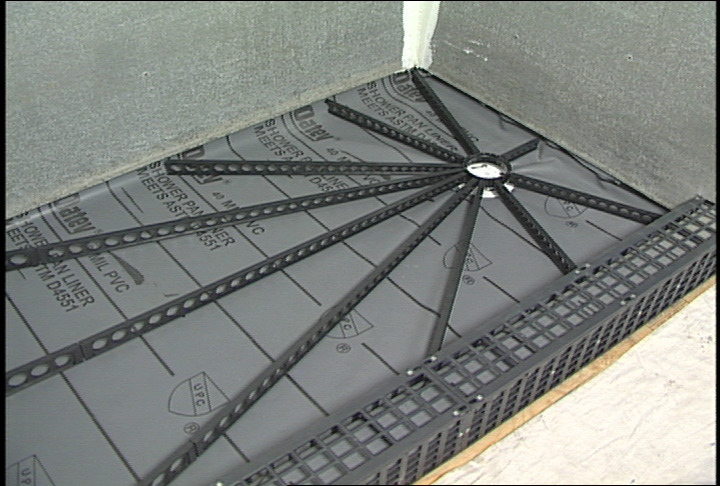

Place the Center Ring around the drain, on top of the drain’s clamping bolts. It marks the low point of your floor.

02

Snap in the sticks

Fit each stick’s tab into one of the ring’s 24 slots and run it out to the wall. Add Extended sticks if a wall is more than 36 in. away.

03

Pack & screed

Fill between the sticks with dry-pack mortar (4 parts sand to 1 part Portland cement) and screed across their tops for a true 1/4 in.-per-foot slope.
