WATERPROOFING

MEMBRANES

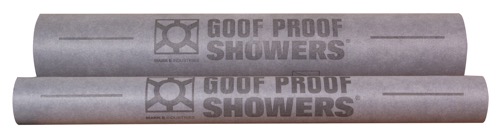

Sheet membrane system

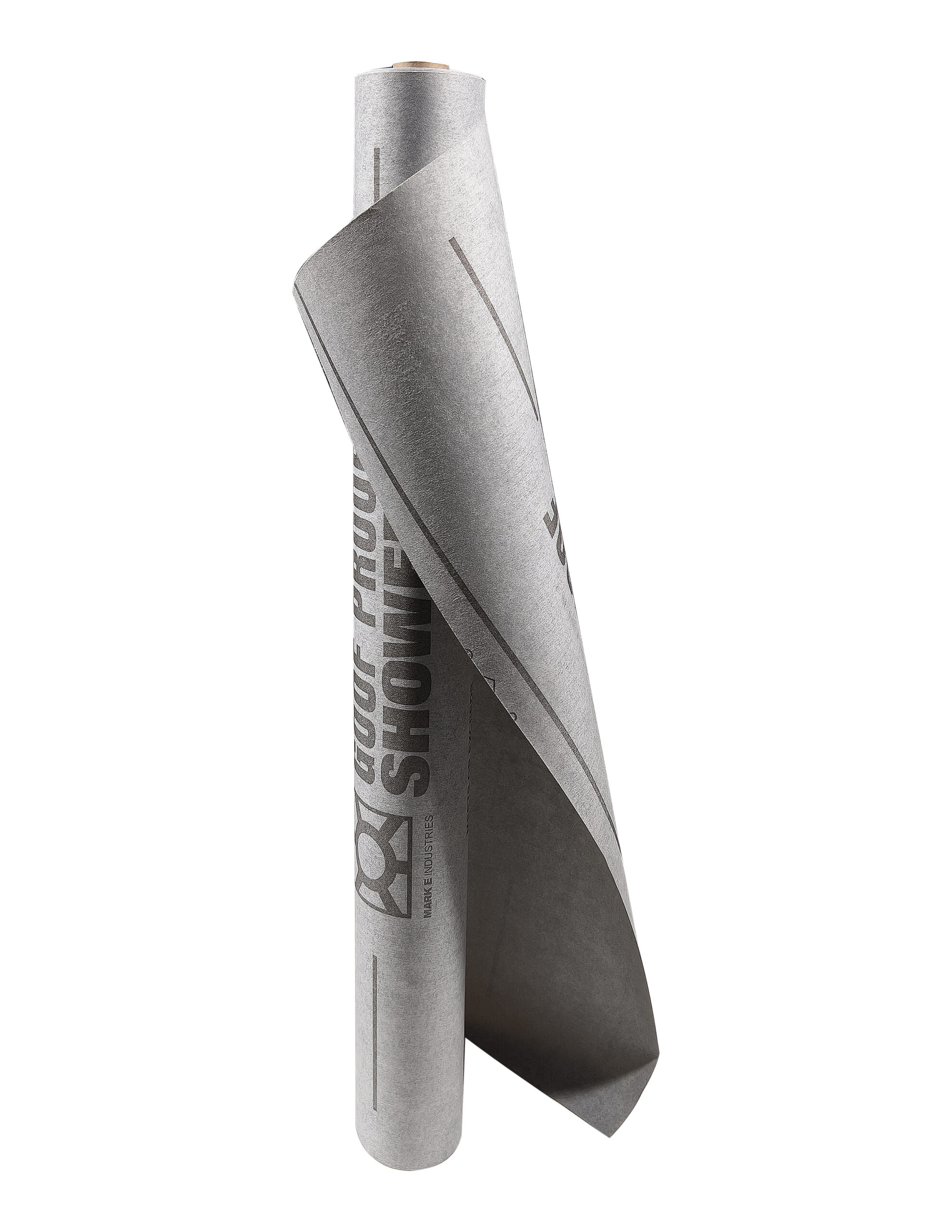

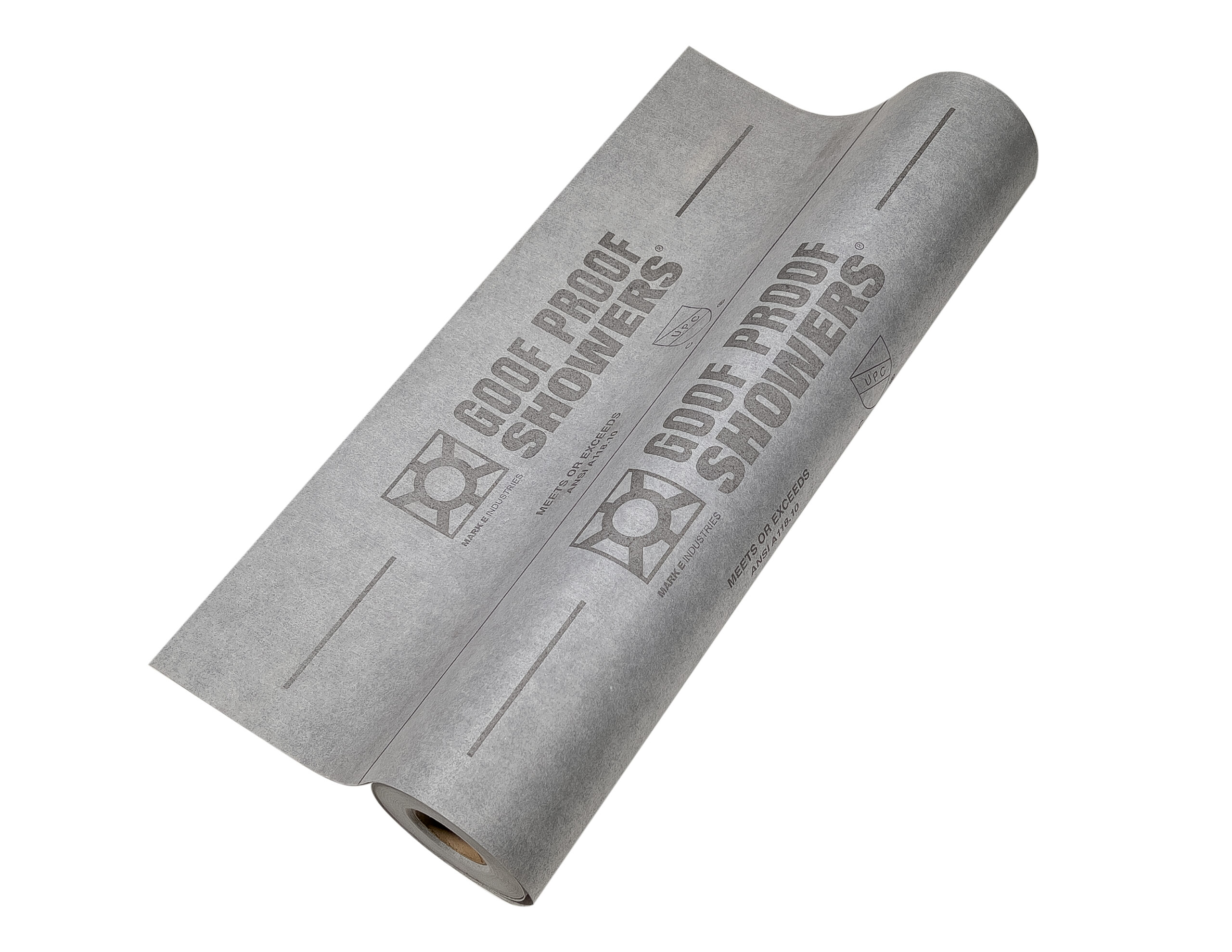

Sheet Membrane

Waterproofing sheet membrane designed for shower pans, shower walls and bath floors, or wherever waterproofing is needed. Also a superior sealing and anti-fracture decoupling membrane under tile and stone flooring.

Key features

  • For shower pans, shower walls and bath floors
  • Seals and decouples under tile and stone flooring
  • Three-layer construction

Specifications

  • Material: two outer layers of non-woven polypropylene, one inner layer of polyethylene waterproofing membrane

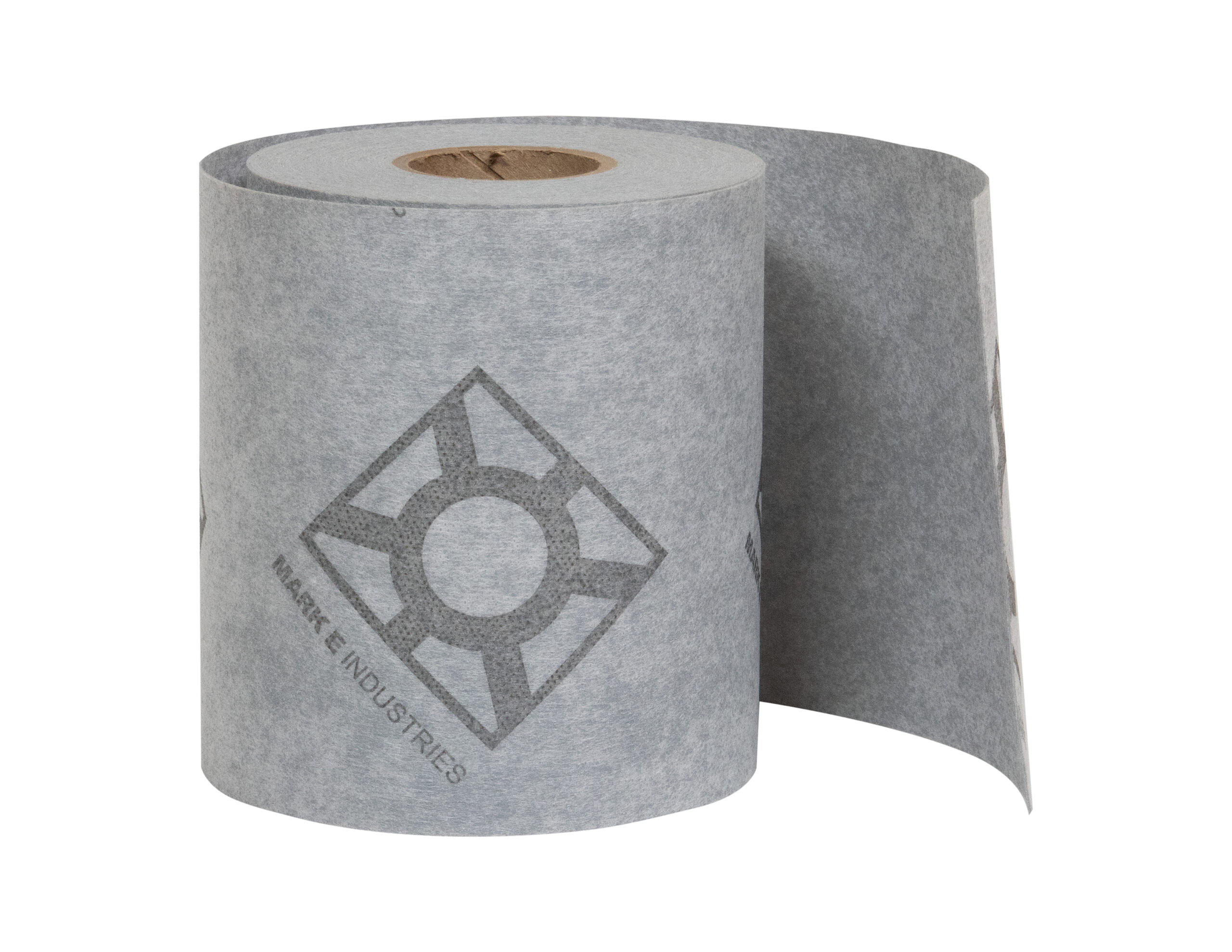

Seam Tape

Goof Proof Seam Tape rolls are for maintaining the recommended minimum 2 inch overlap of edges when waterproofing in the corners of shower walls. Also used to cover sheet seams for anti-fracture/moisture control on floors. Available in 2 roll lengths.

  • GPST-5″x 39′ 5″ will cover the standard shower size of 3′ x 5′ x 8′ including the shower pan.

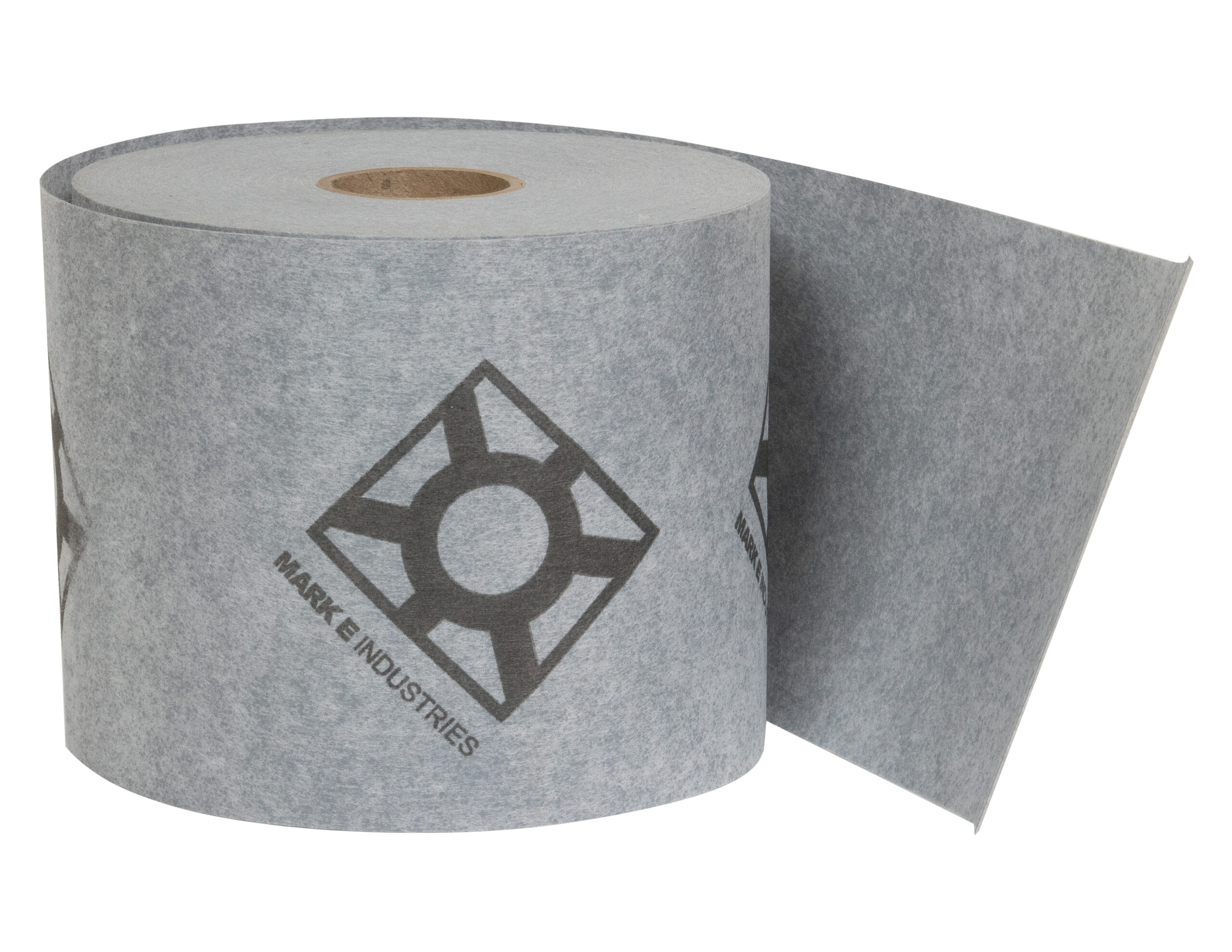

  • GPST-5″x 98′ 5″ for larger uses

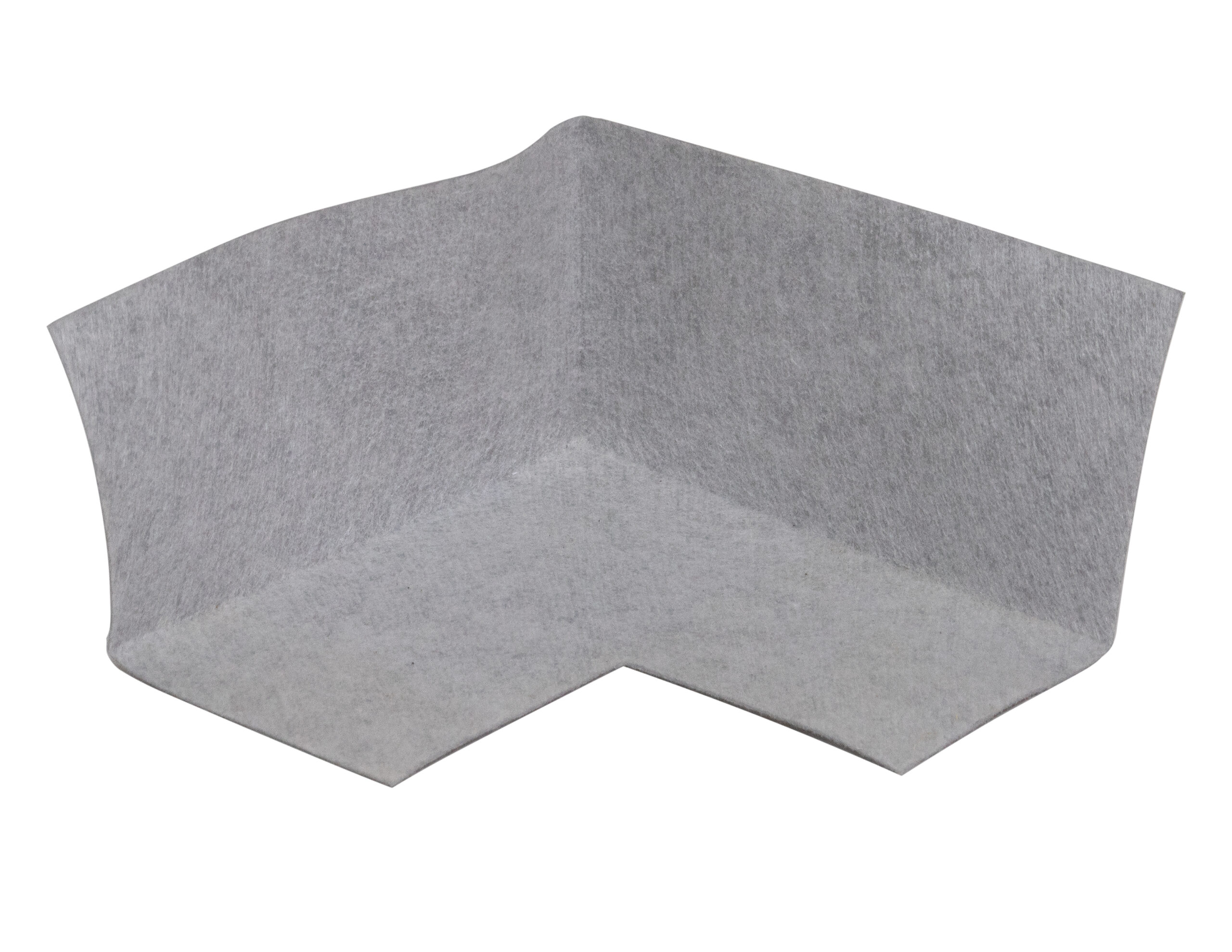

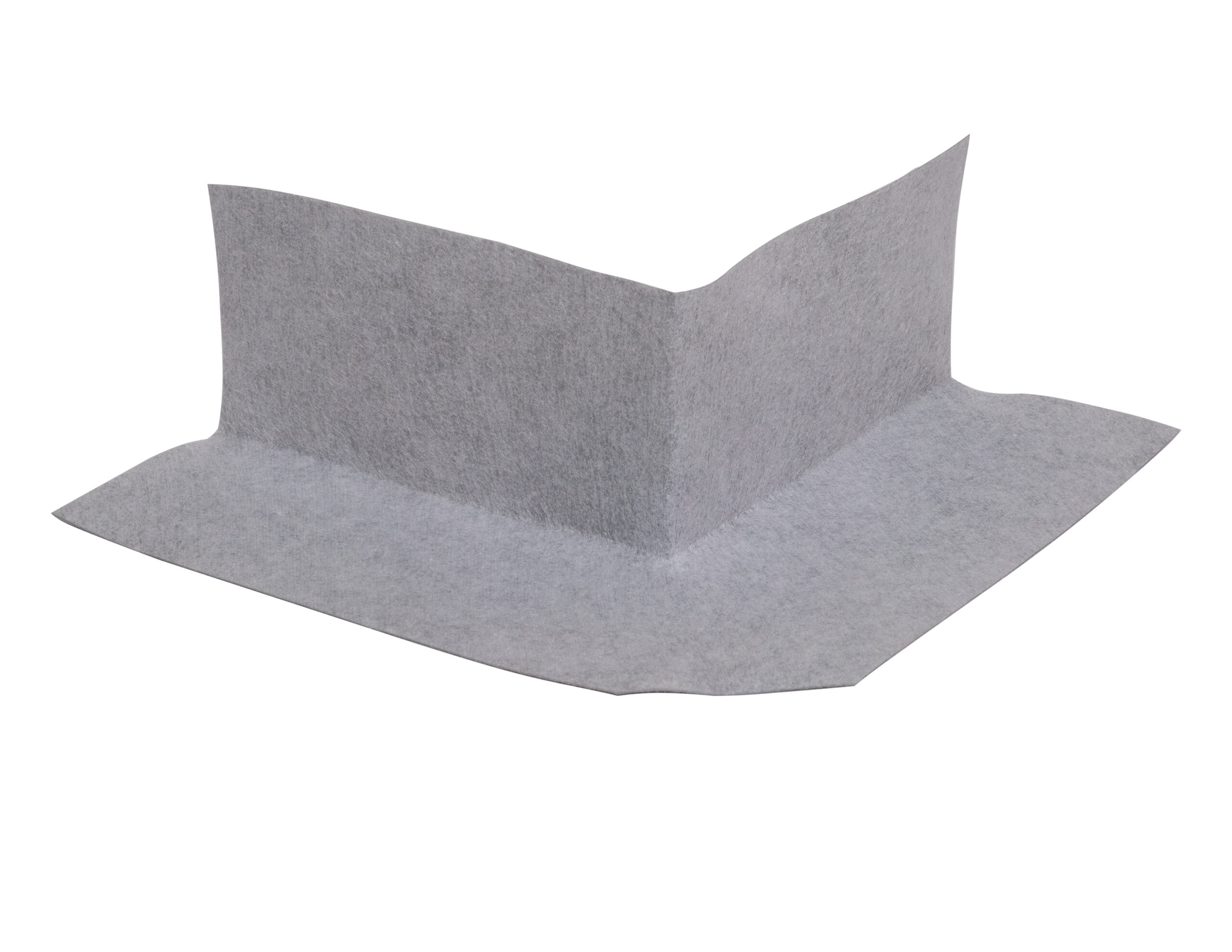

Corners, Inside and Outside

Goof Proof Sheet Membrane pre-formed corners are used to insure a water tight seal in all corners. Installs easily with modified thin-set or Goof Proof Sealant GPS-2000 (recommended).

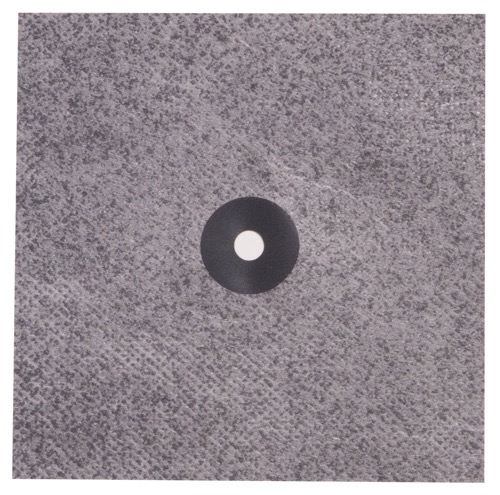

Flexible Pipe Collar

Goof Proof Sheet Membrane Flexible Pipe Collar is used to insure a water tight shower around both 1/2 and 3/4 inch shower head extension arms. Installs easily with modified thin-set or Goof Proof Sealant GPS-2000

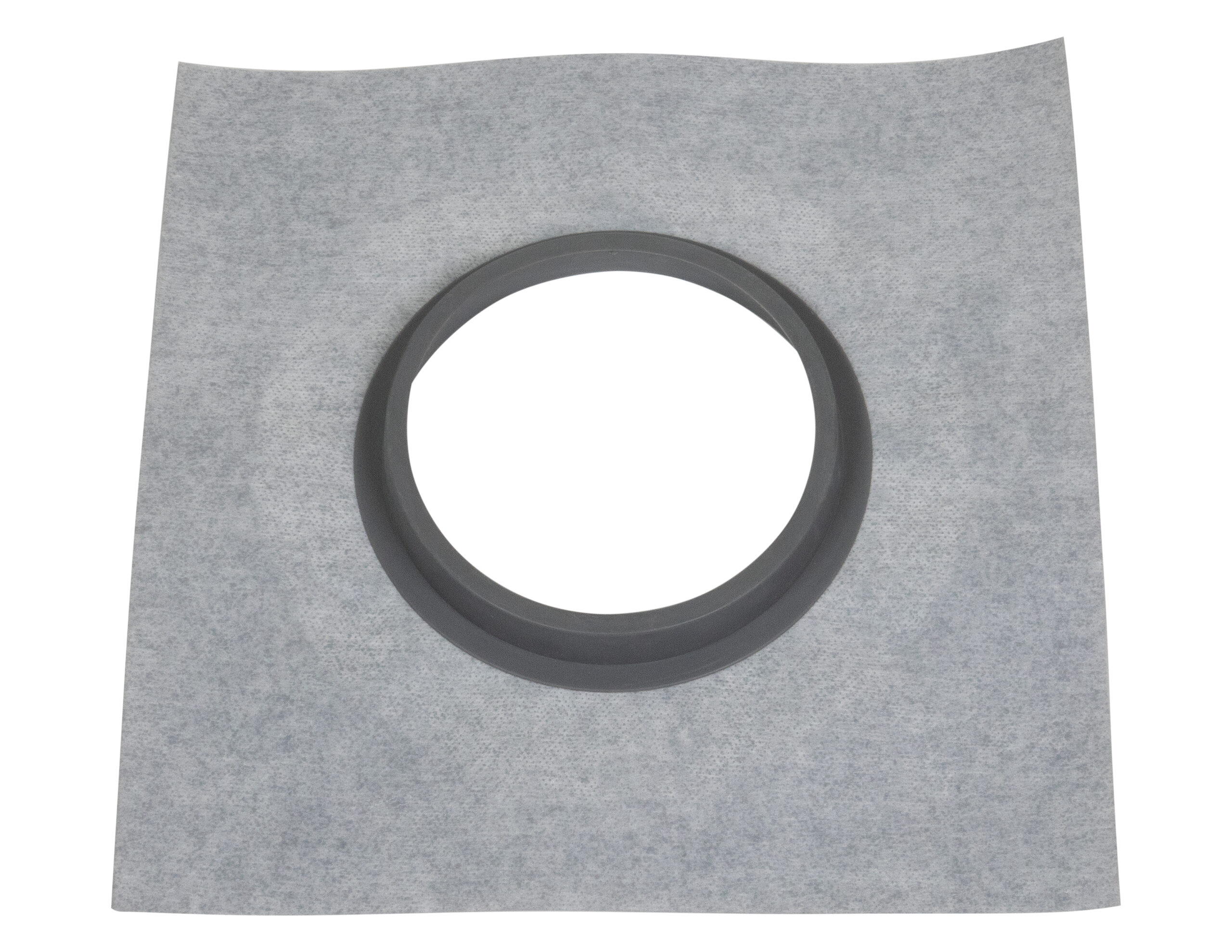

Mixing Valve Seal

Goof Proof Sheet Membrane Mixing Valve Seal is used for additional water control around shower valves. Installs easily with modified thin-set or Goof Proof Sealant GPS-2000. Measures 9.25 ins. x 9.25 ins. x 20 mil thick. A 4.5 in. rubber reinforced center opening hole fits most valves

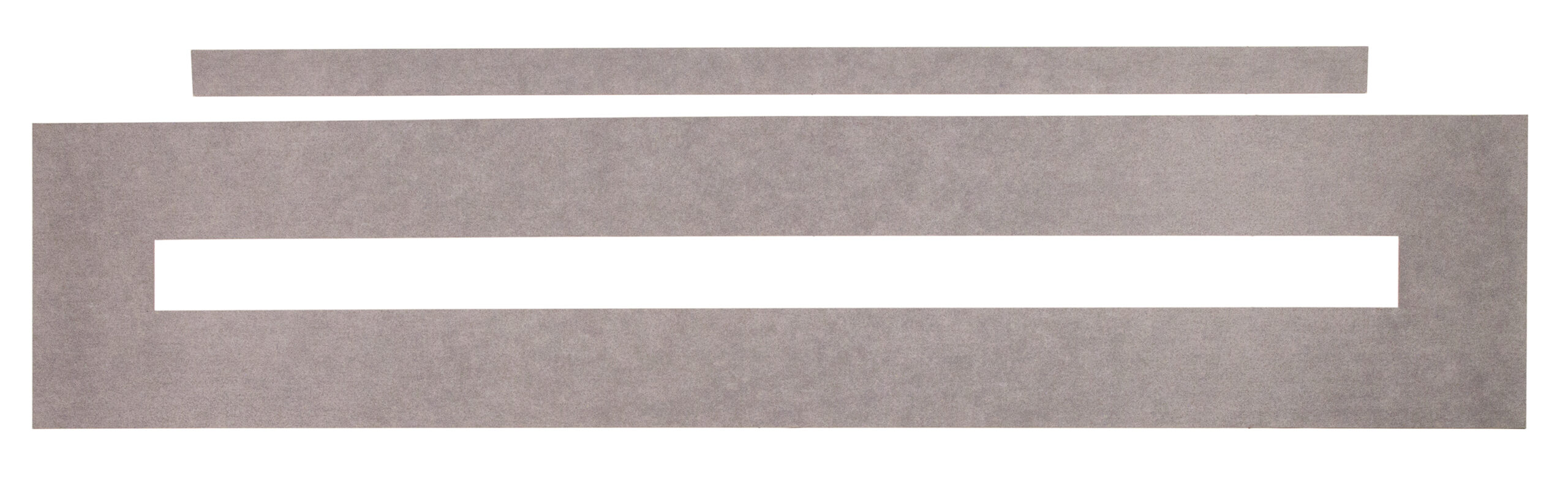

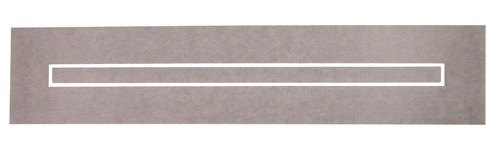

Linear Drain Collar

Goof Proof Sheet Membrane Linear Drain Collar 69″x15″ is used to ensure tile adhesion to the drain body and insert and for water control around the linear drain. Adaptable to all drain body and insert lengths by cutting to fit, maintain a 2″ overlap. Installs easily with Goof Proof Sealant GPS-2000


VINYL PAN LINER SYSTEM

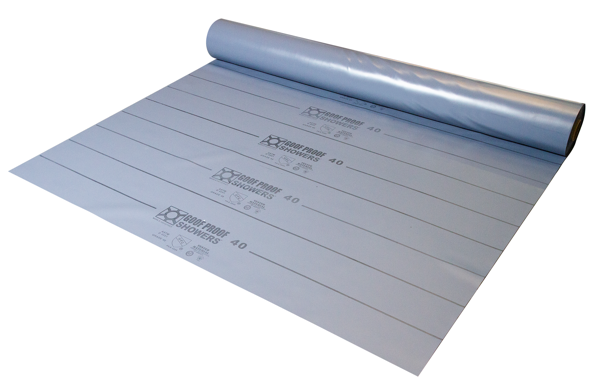

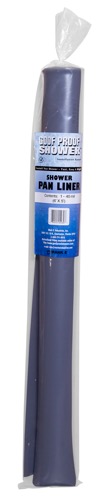

Shower Pan Liner

40 mil Vinyl Shower Pan Liner for waterproofing and controlling water in shower bases. Pieces can be joined together to form a larger piece using a flexible liner glue. Meets or exceeds all specifications and standards. Goof Proof Shower Pan Liner is available in 5 options.

Key features

  • 40 mil vinyl
  • Join pieces for larger showers
  • Meets or exceeds all specifications and standards



Specifications

  • Options: 5 (the All-in-One Kits name SPL/40/30, a 6 × 5 ft piece)

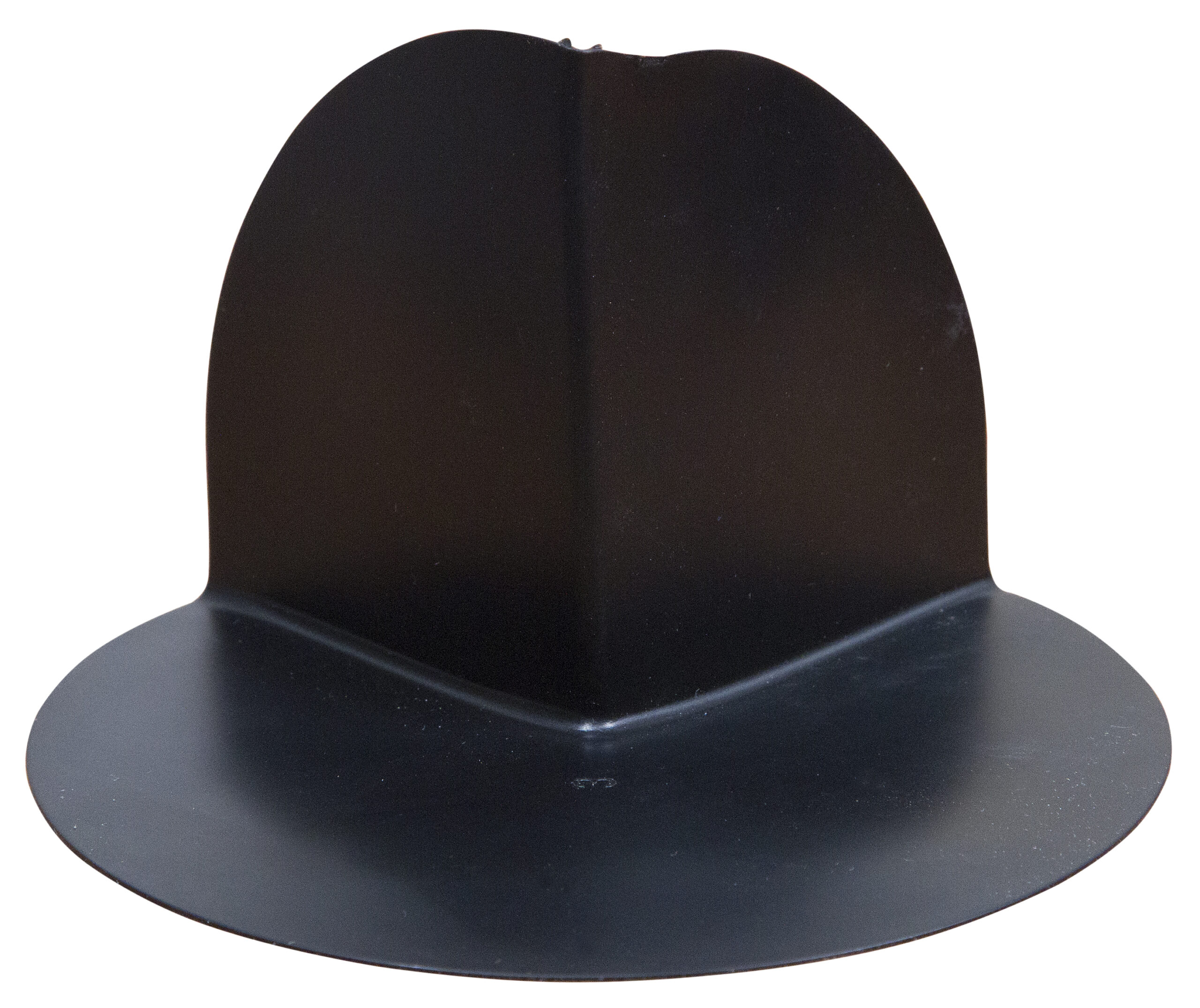

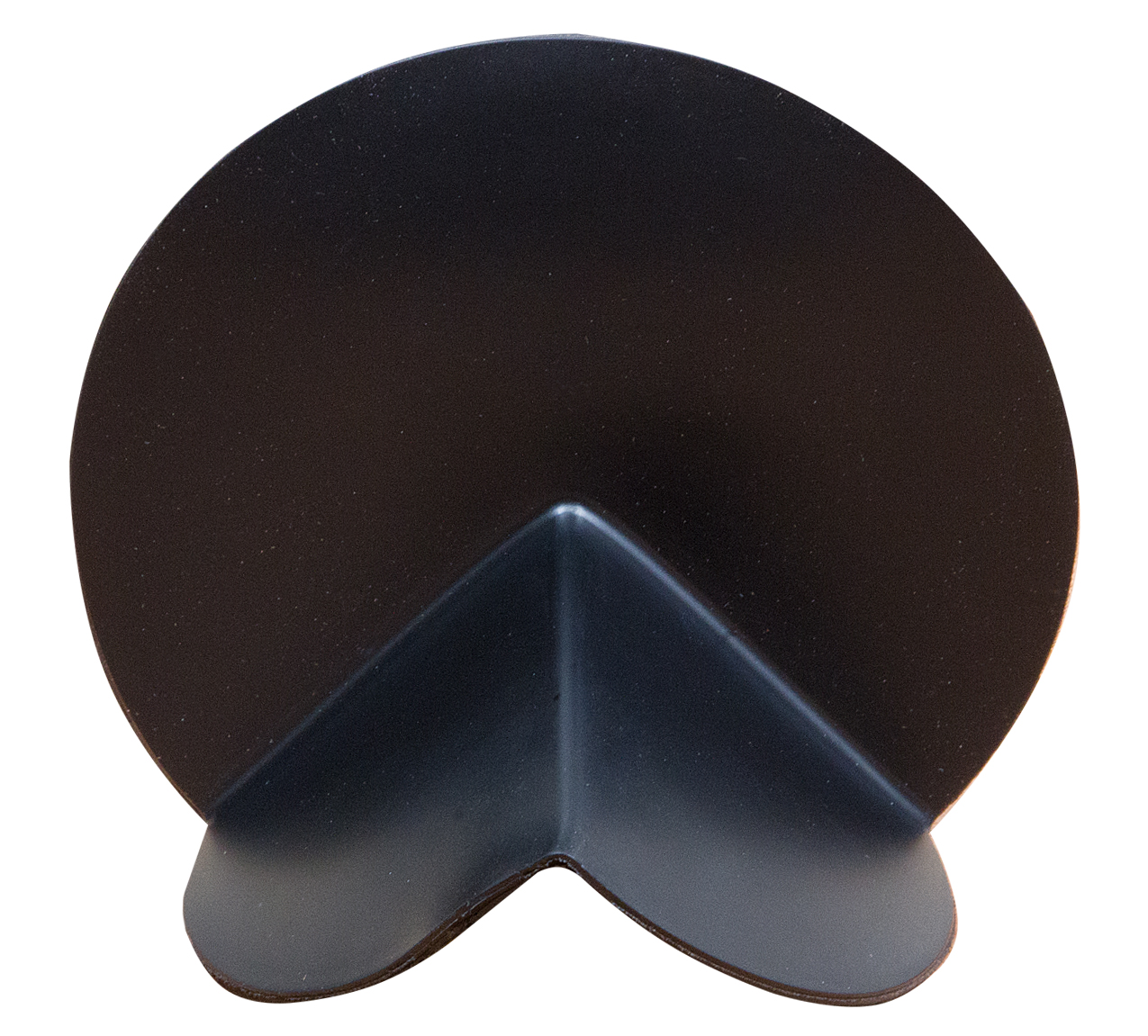

Dam Corners

Pre-formed vinyl outside corners for covering cut liner when necessary at curb top to maintain liner integrity and water control. Bonds using GPFVC-Flexible Vinyl Cement



Works with

  • Shower Pan Liner
  • Pan Liner Glue (GPFVC Flexible Vinyl Cement)

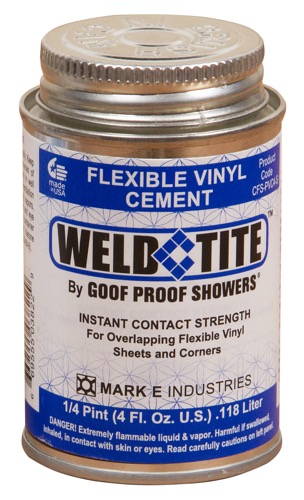

Pan Liner Glue

A non-pressure, medium-body glue for fusing liner-to-liner seams and attaching dam corners.

Works with

  • Shower Pan Liner
  • Dam Corners

Specifications

  • Size: 4 oz. cans only, with applicator in lid

PLUMBING GLUE

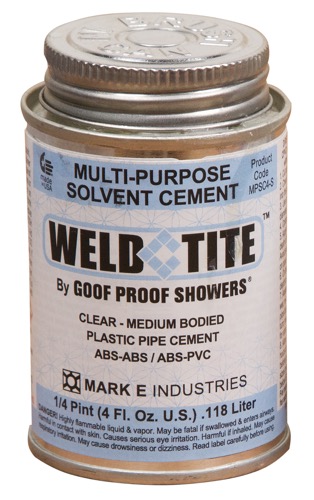

PVC/ABS Pipe Glue

A multi-purpose glue for both pressure and non-pressure fittings.

Works with

  • PVC to PVC, PVC to ABS and ABS to ABS

Specifications

  • Size: 4 oz. cans only, with applicator in lid
