DRAINS


SHOWER DRAINS

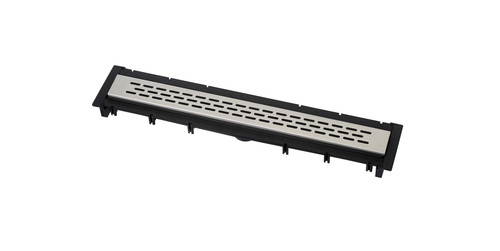

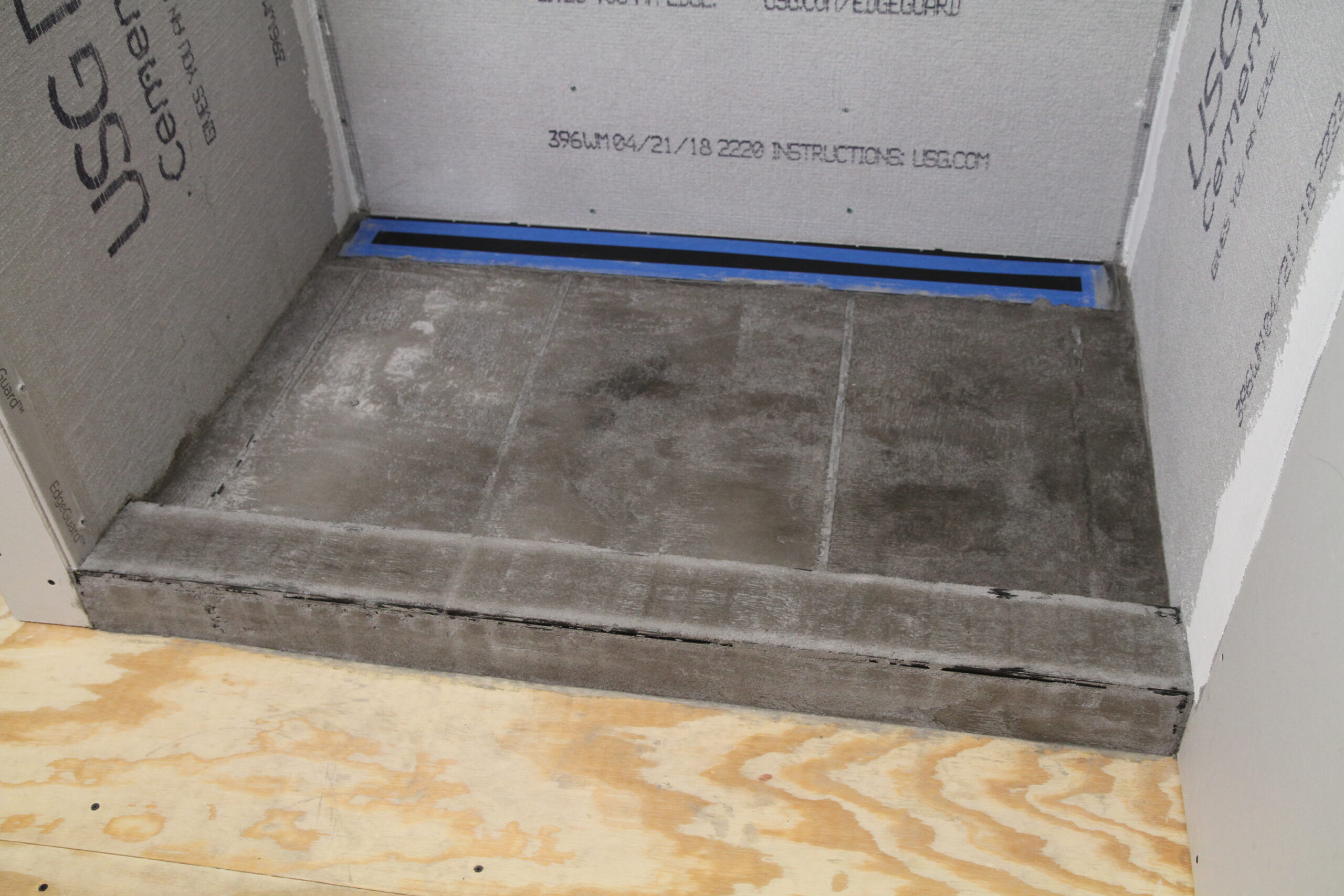

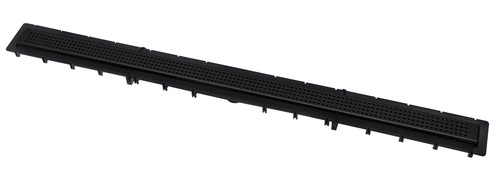

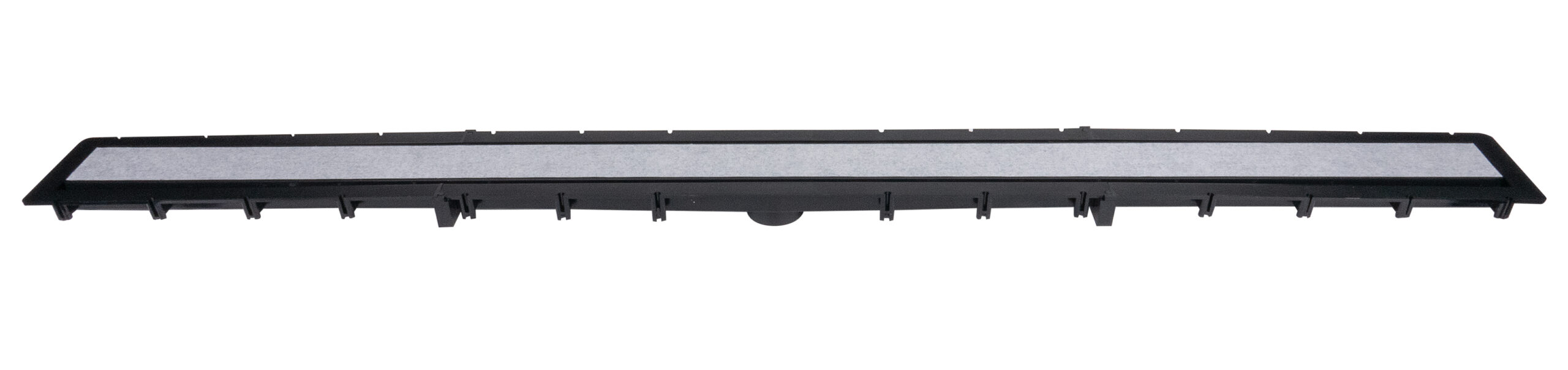

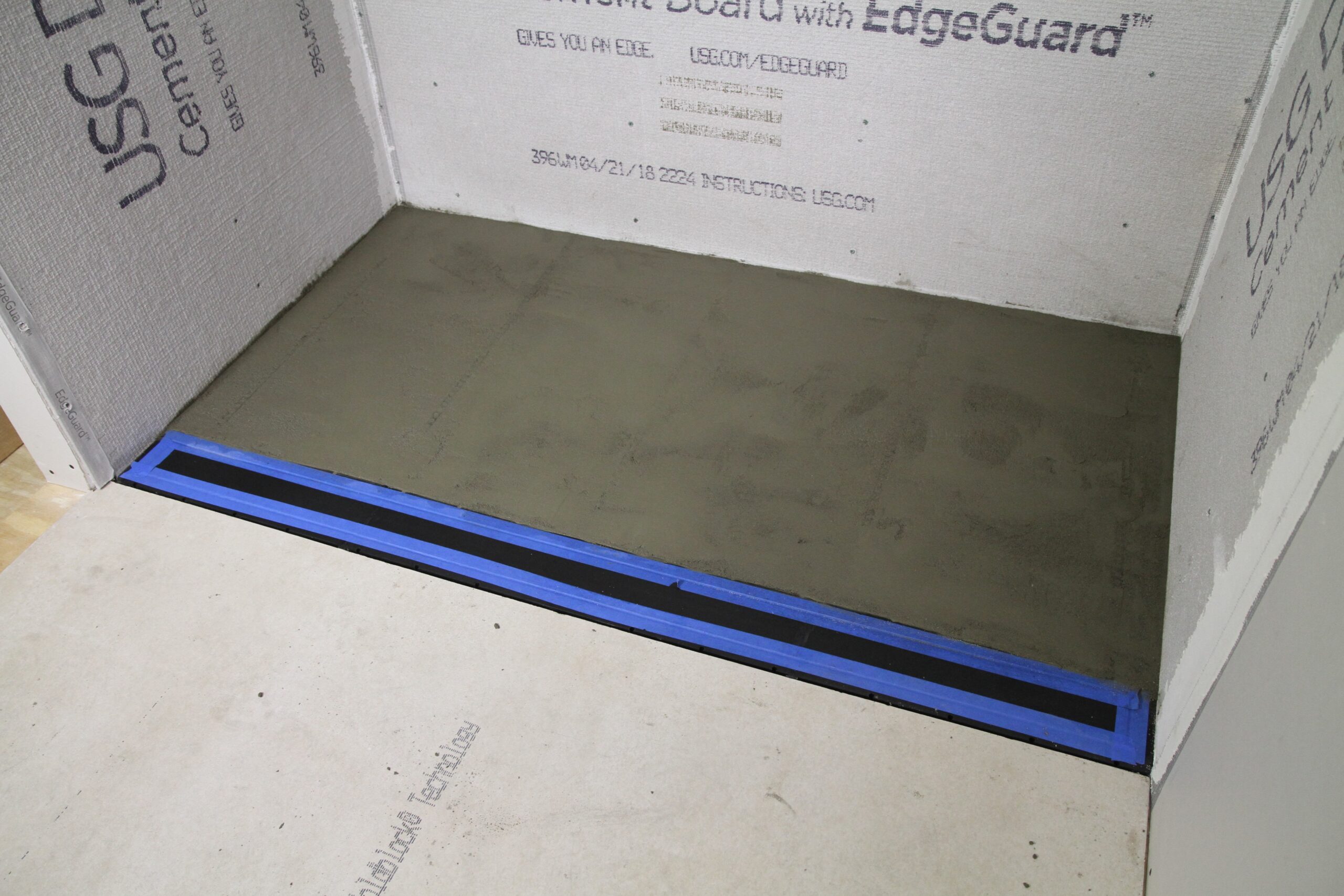

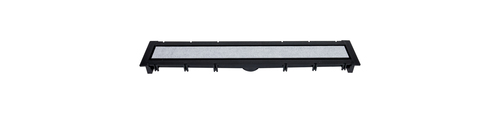

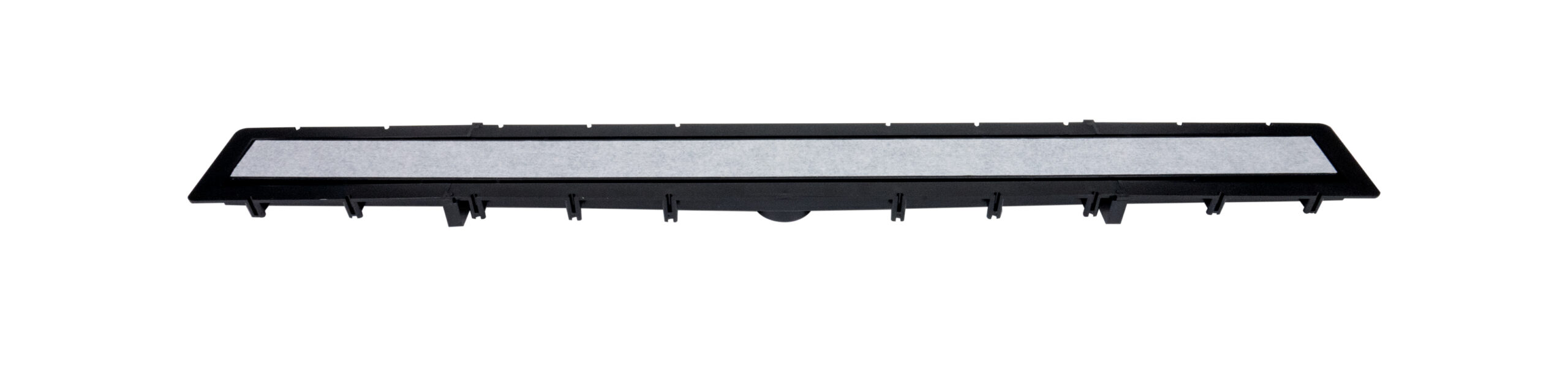

LINEAR DRAIN

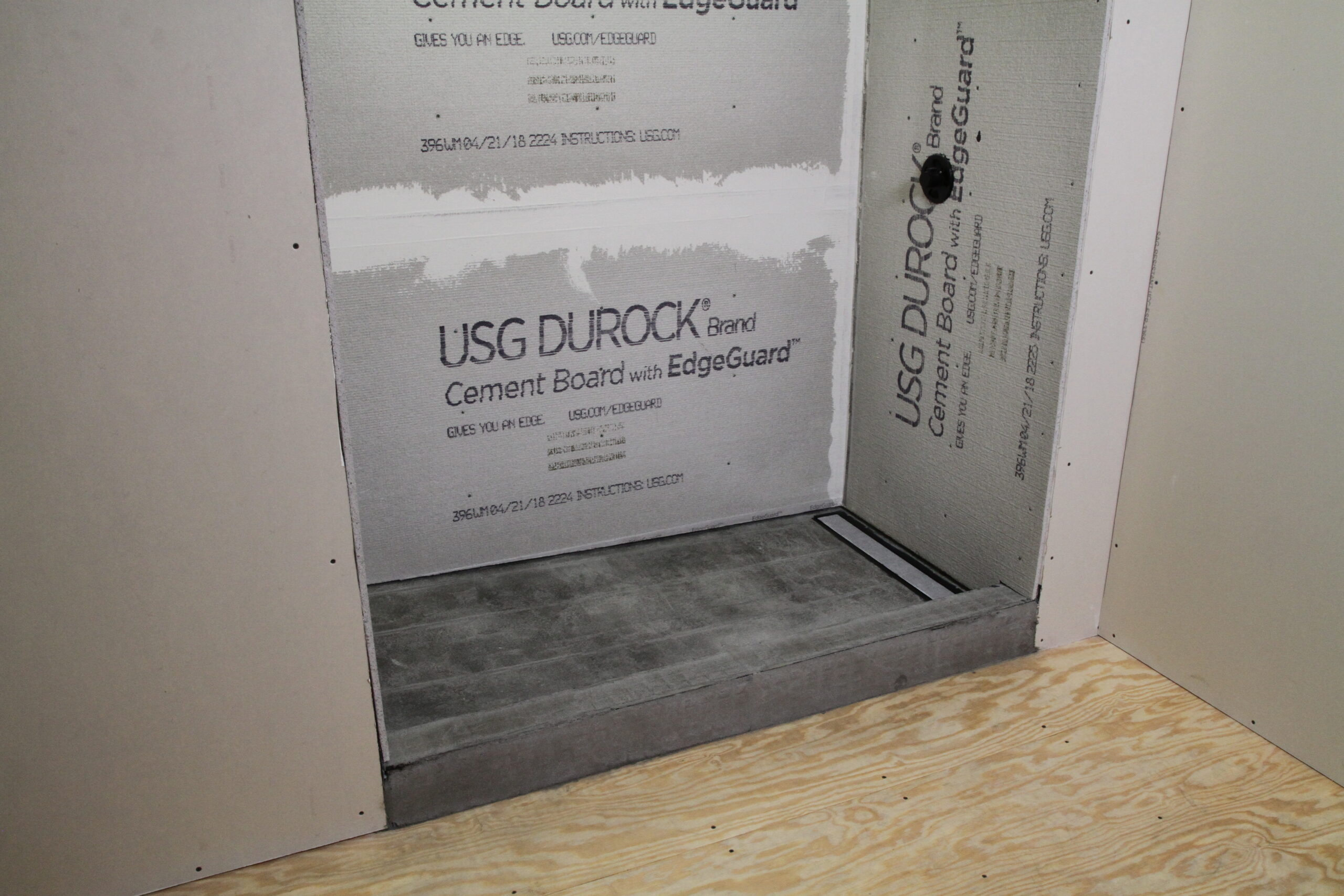

A linear drain with a tileable insert top (metal grates available separately). Female receivers attach Quick-Pitch Float Sticks directly to the drain. Install it with or without a curb to create a barrier-free shower entrance.

Key features

  • Float sticks attach directly to the drain
  • Tileable insert top
  • Angled drain trough encourages water movement
  • Insert removes for easy cleaning
  • Works with any waterproofing method: roll-on, 40 mil vinyl pan liner or sheet membrane

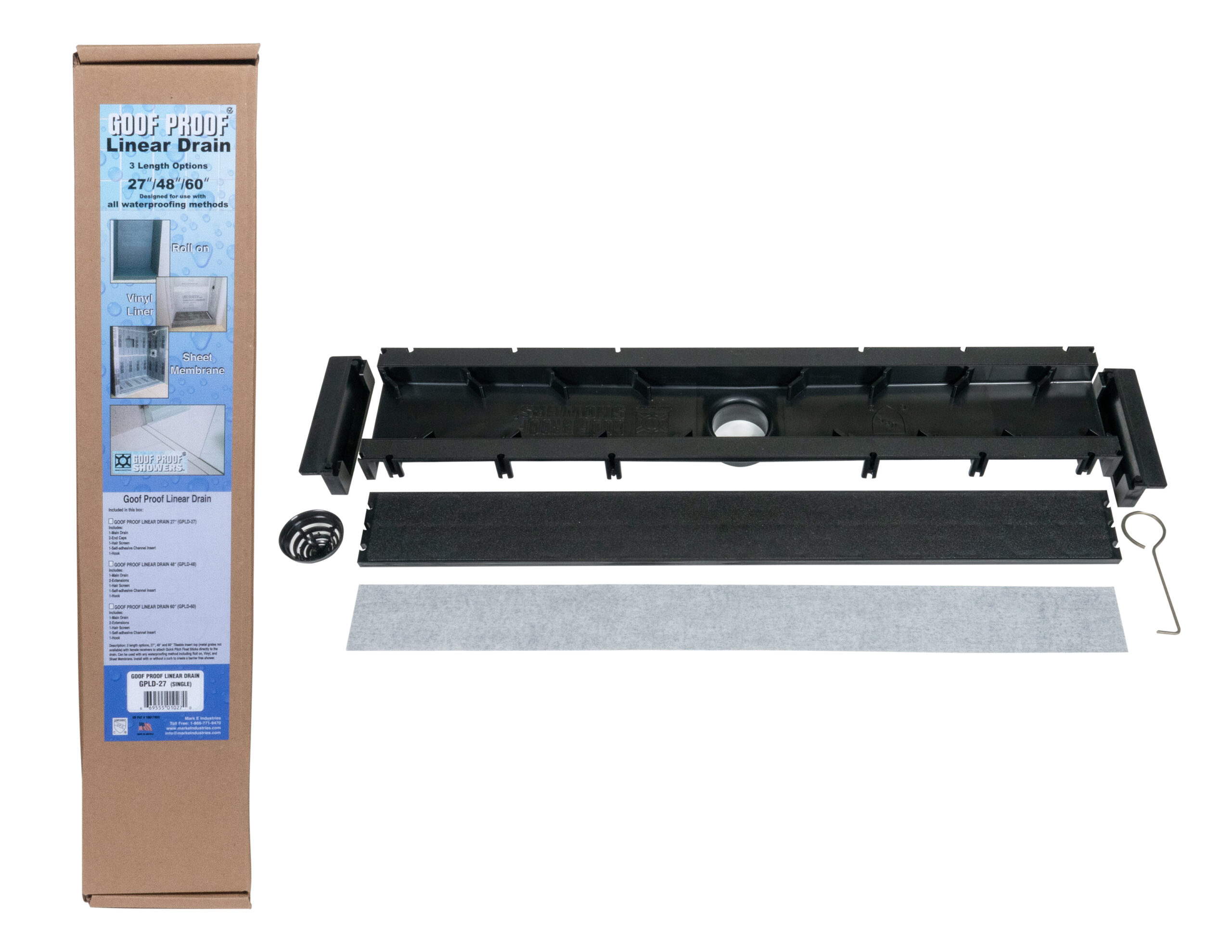

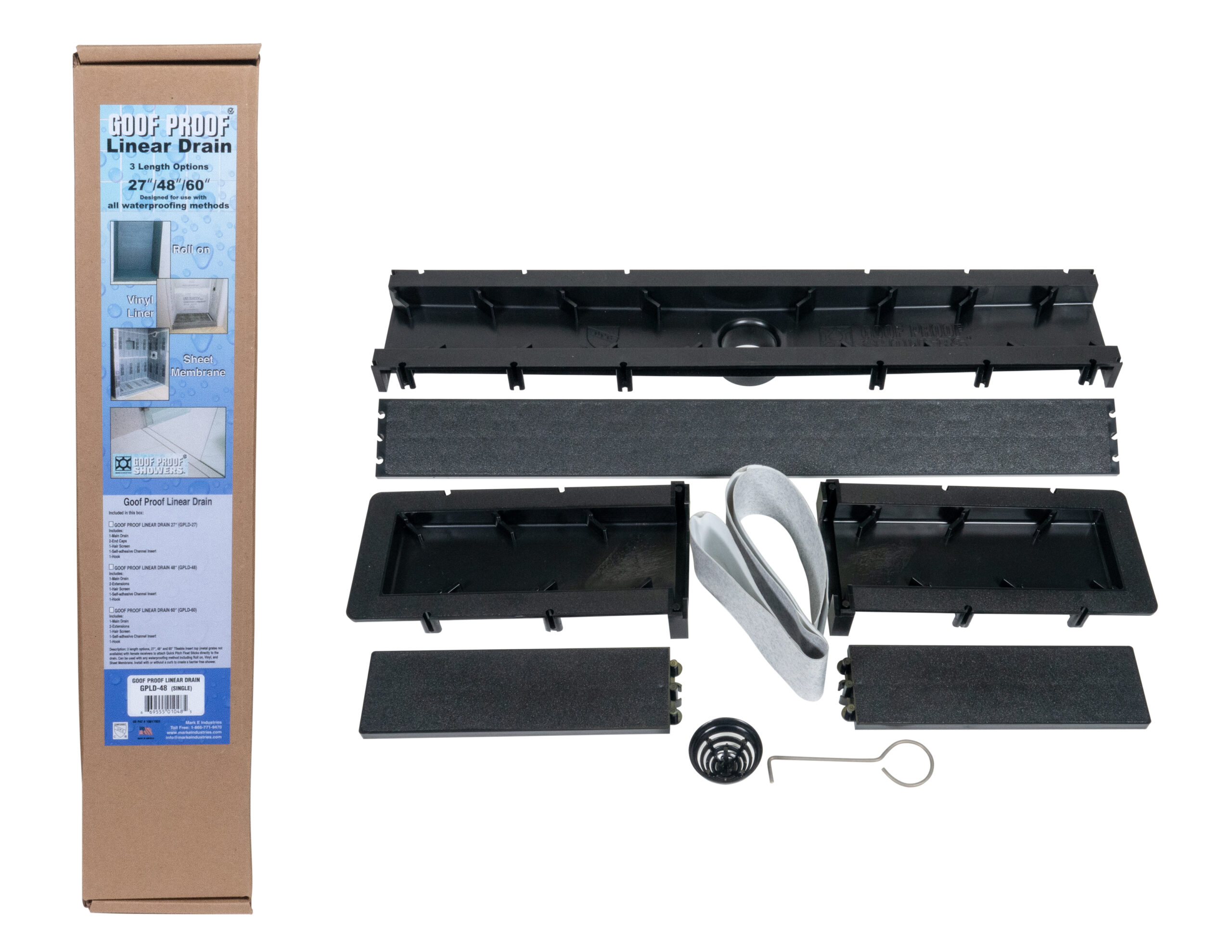

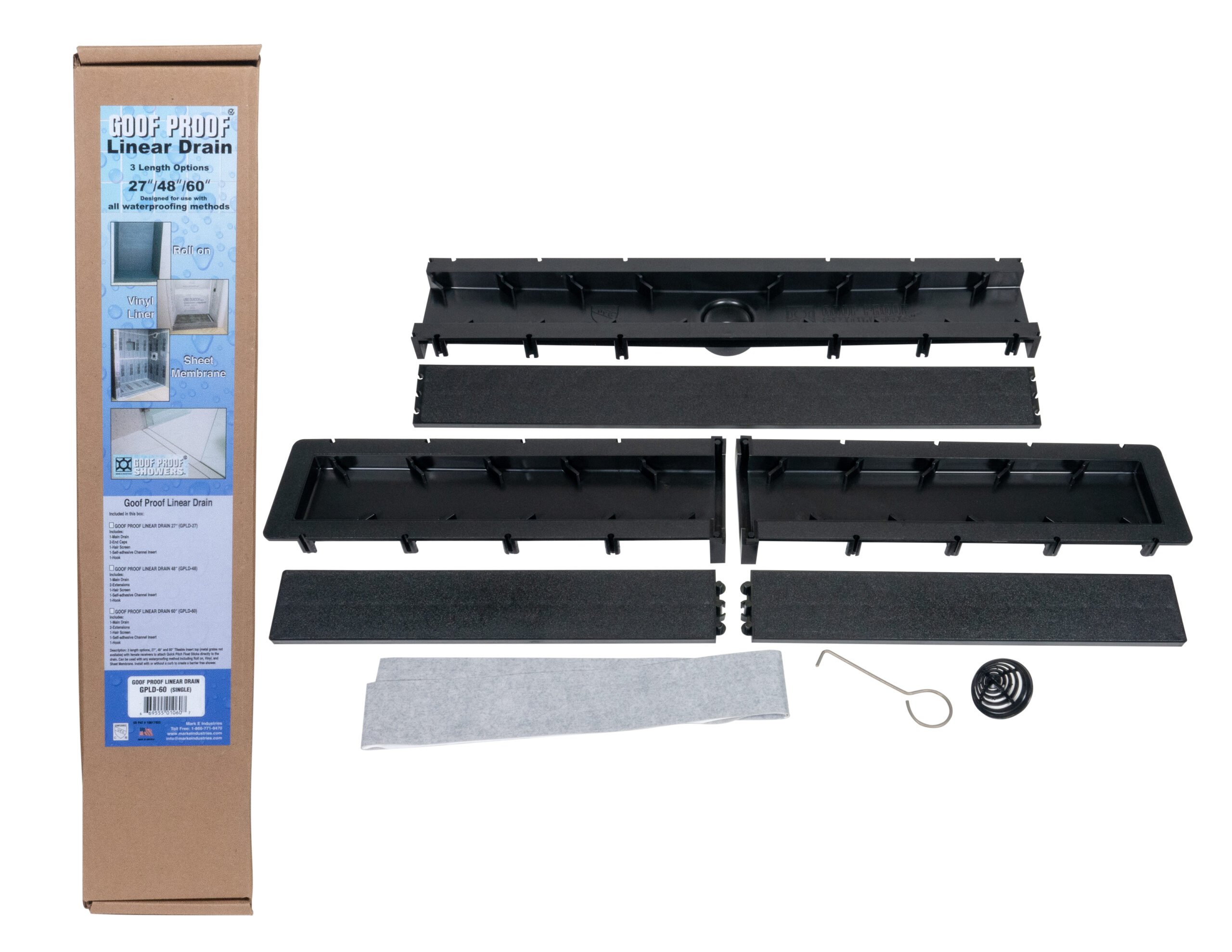

What’s included

  • Main drain section with insert
  • Self-adhesive insert bonding strip
  • Hair screen
  • Insert removal tool
  • Instructions

Linear Drain specifications

Available in three lengths. Compare the sizes to find the one that fits your shower.

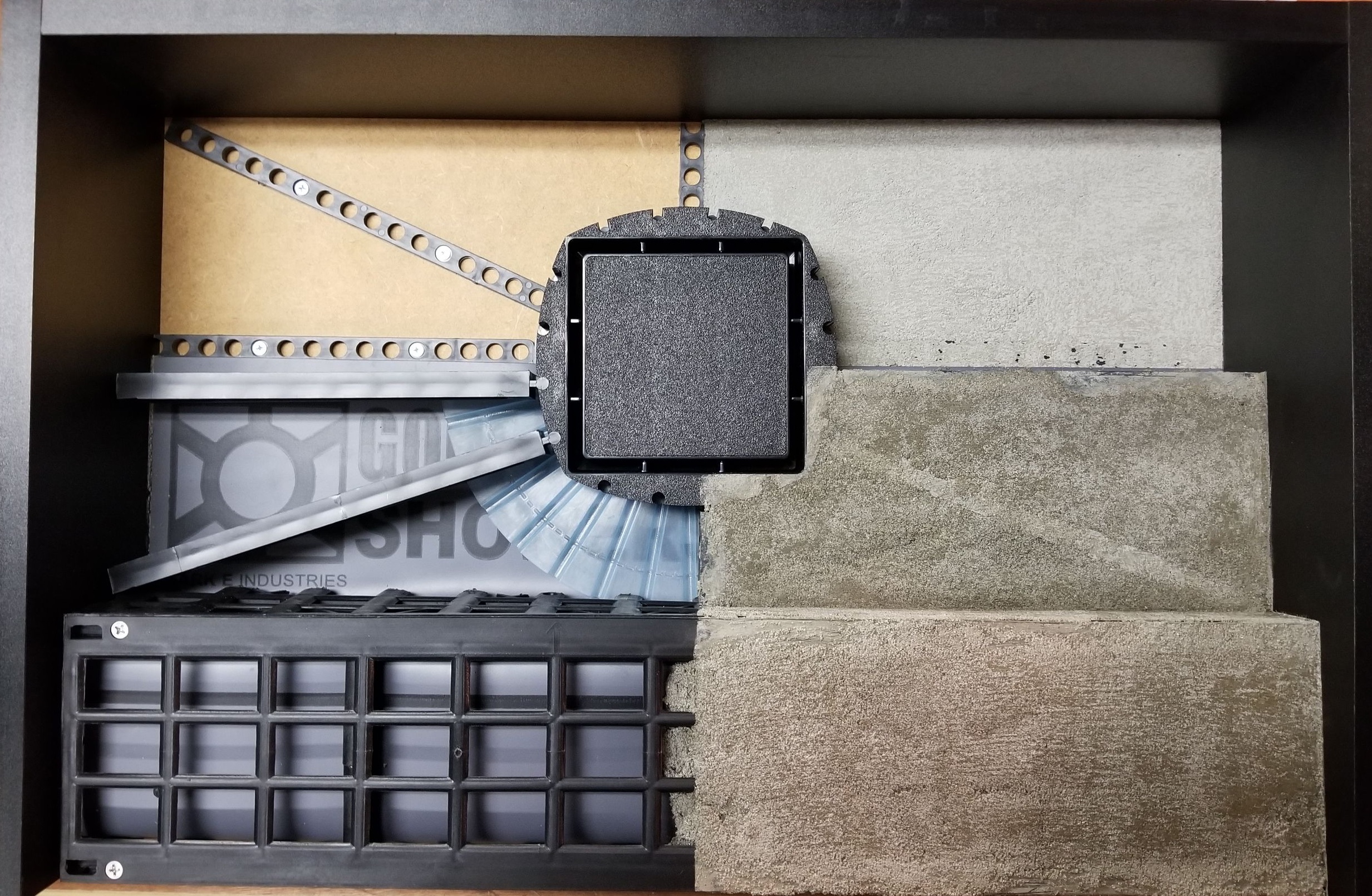

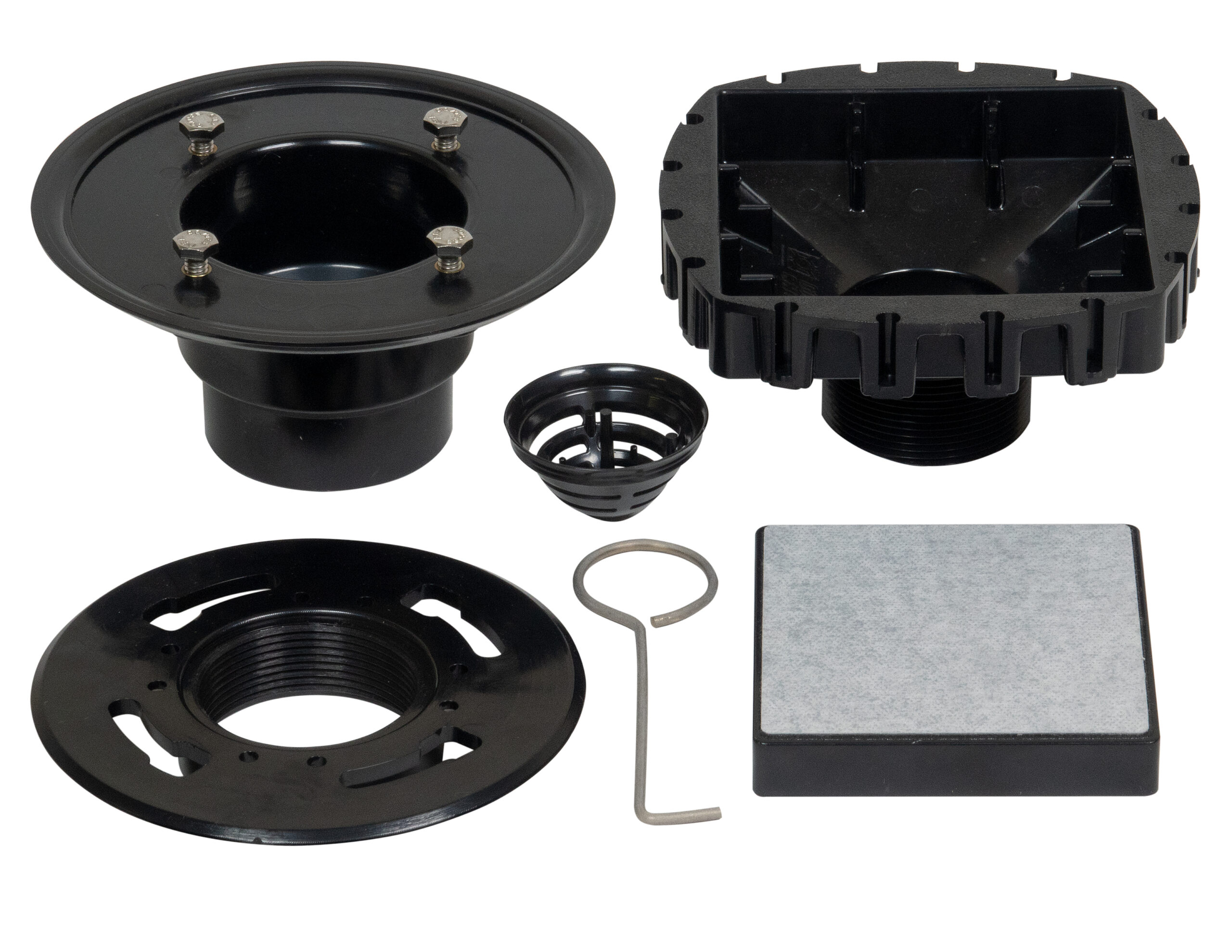

SQuARE DRAIN

A 4 in. square shower drain with a tileable insert top. Female receivers attach Quick-Pitch Float Sticks directly to the drain, and it can be used with all waterproofing systems, including roll-on, 40 mil vinyl and sheet membranes.

Key features

  • Float sticks attach directly to the drain
  • Tileable insert top
  • Works with all waterproofing systems

What’s included

  • Drain flange assembly with threaded clamping ring
  • Threaded riser and insert
  • Hair screen
  • Insert removal tool

Specifications

  • Size: 4 in. square
  • Grates: metal grates currently unavailable

GRATES & FINISHING

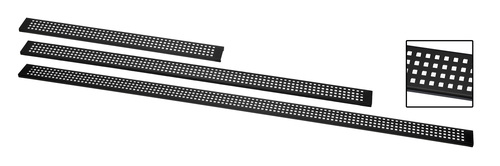

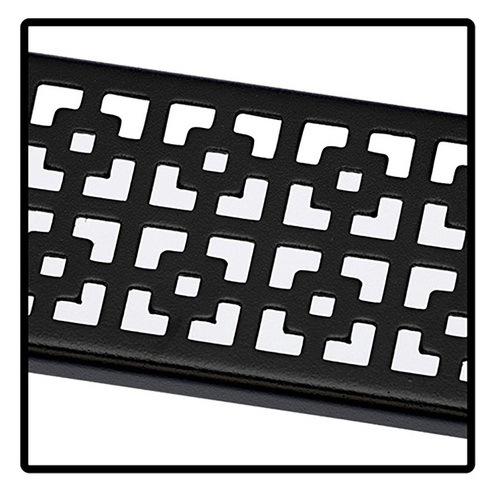

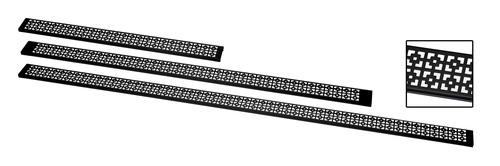

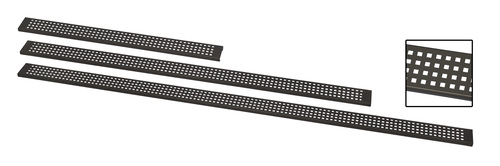

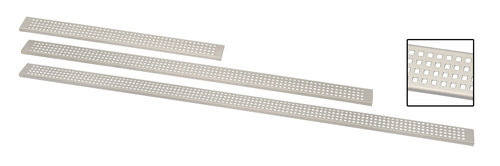

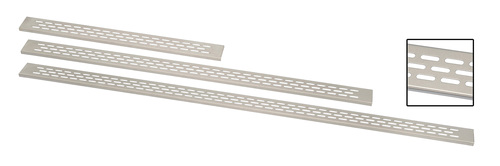

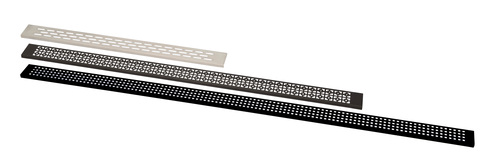

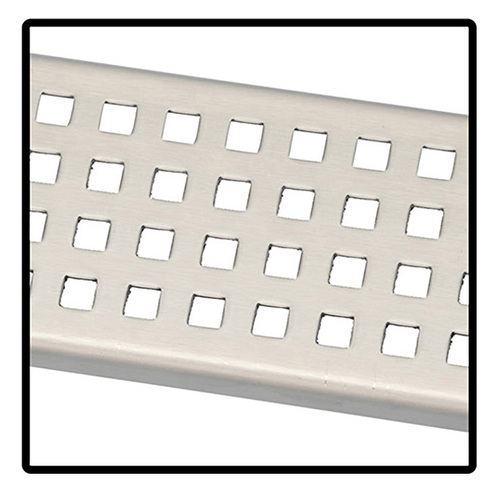

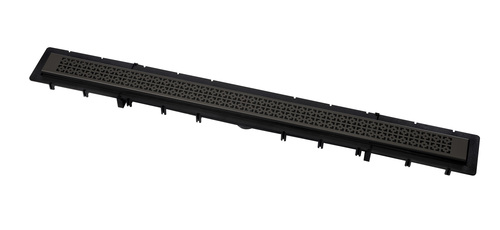

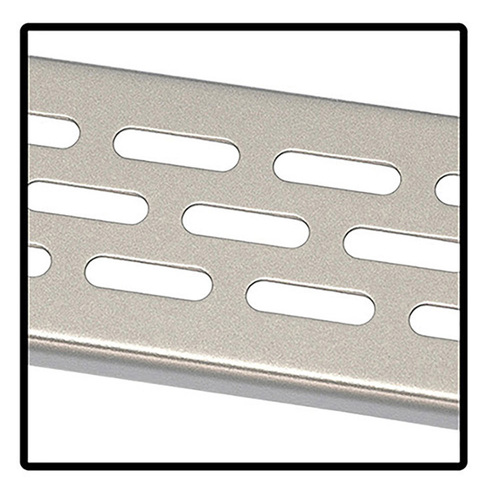

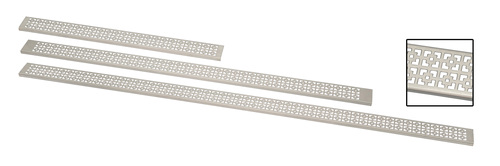

Linear Drain Grates

High-quality stainless steel, contemporary-styled grate assemblies, sold separately as an option to the tiled-on inserts included in every Goof Proof Linear Drain package.

Works with

  • Goof Proof Linear Drains GPLD-27, GPLD-48 and GPLD-60

What’s included

  • Drain adapter(s) for your drain length
  • Height adjusters for all common tile and stone thicknesses

Specifications

  • Lengths: only the three linear drain lengths
  • Styles: 3 designs
  • Finishes: 3 colors

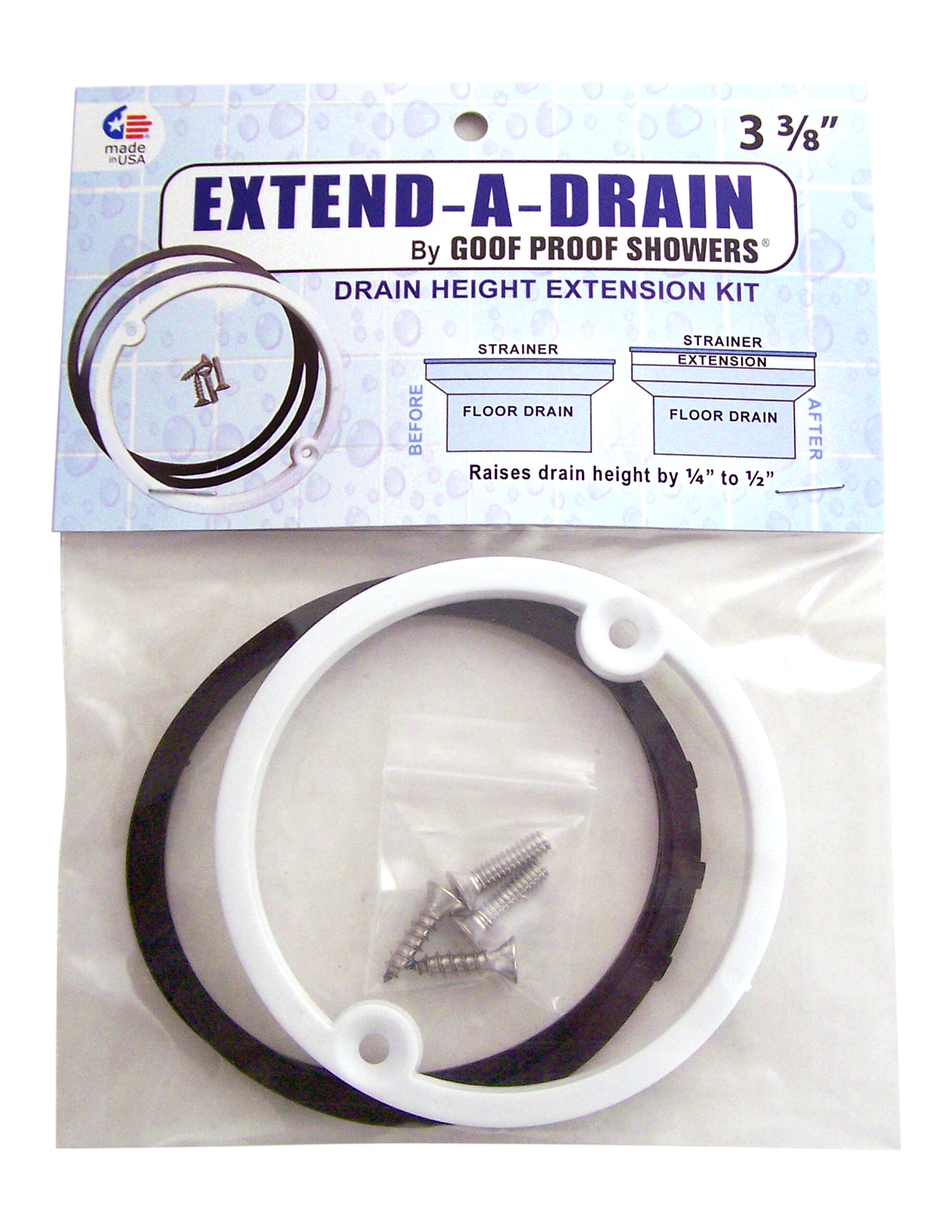

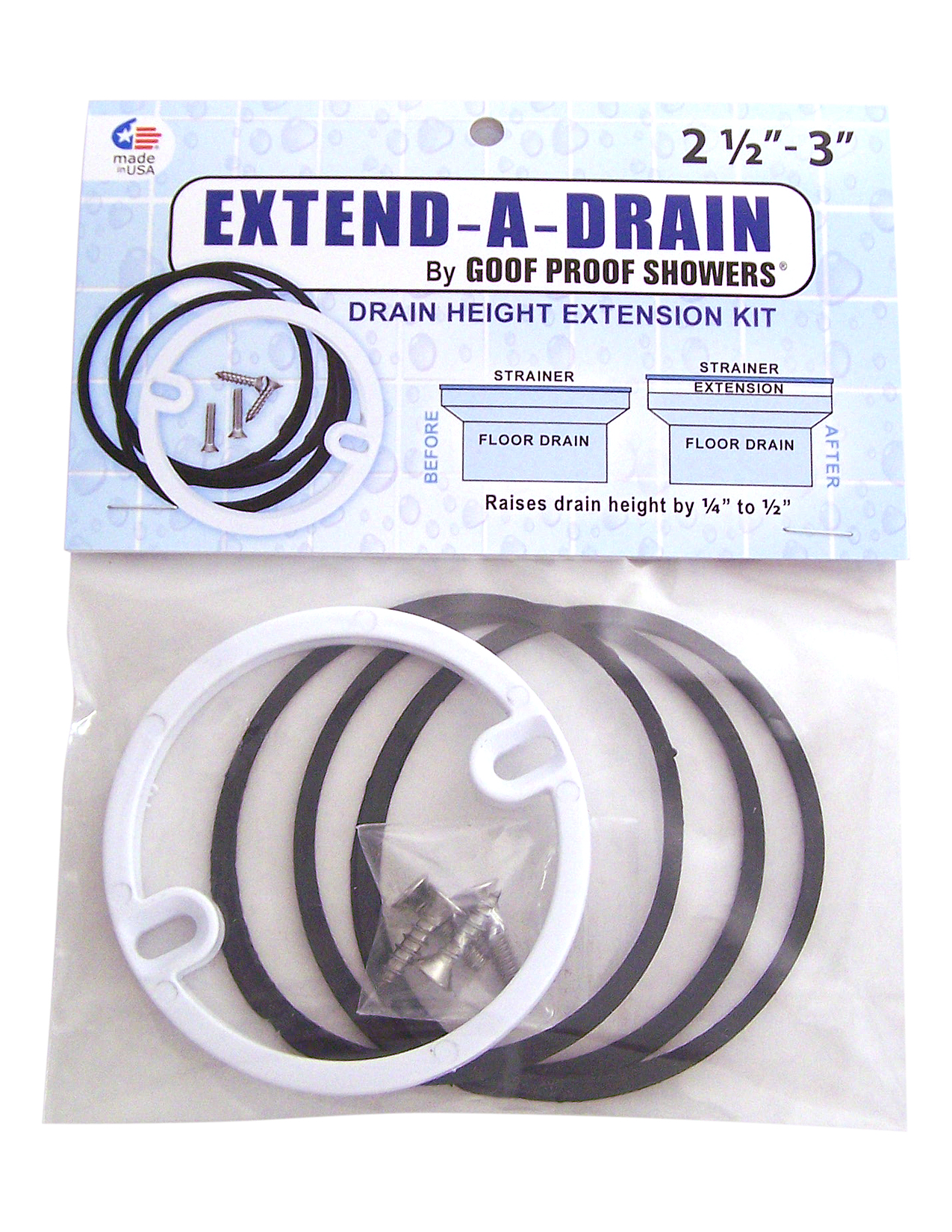

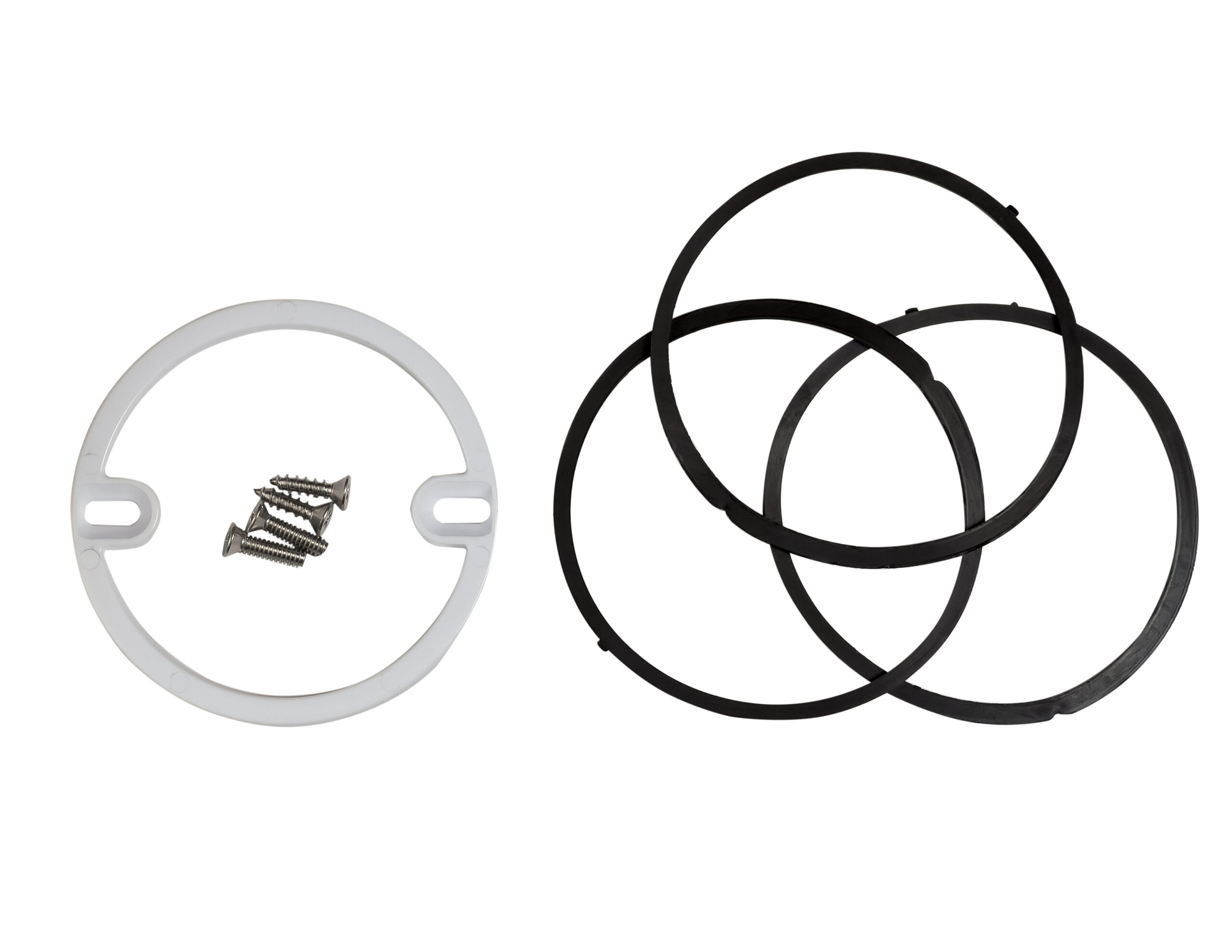

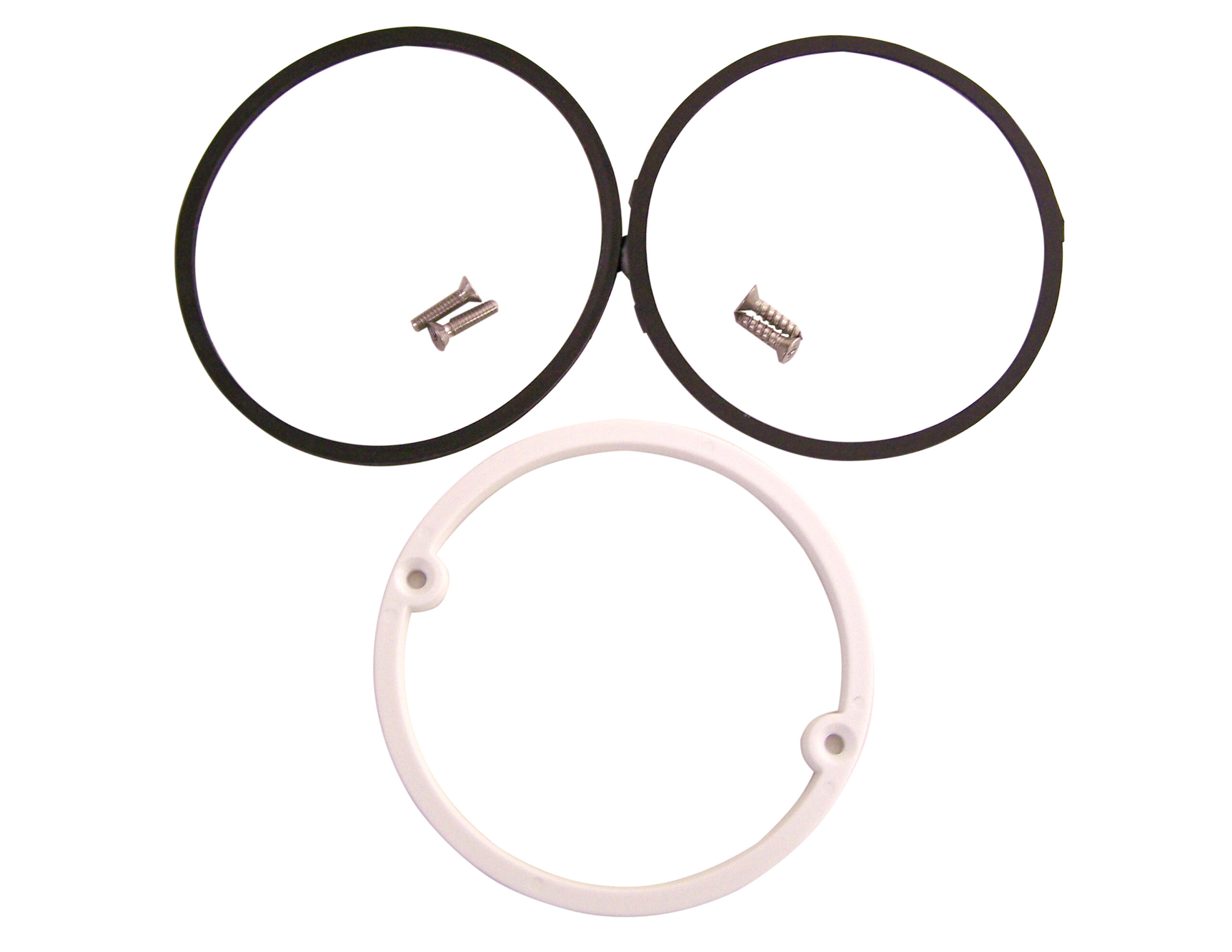

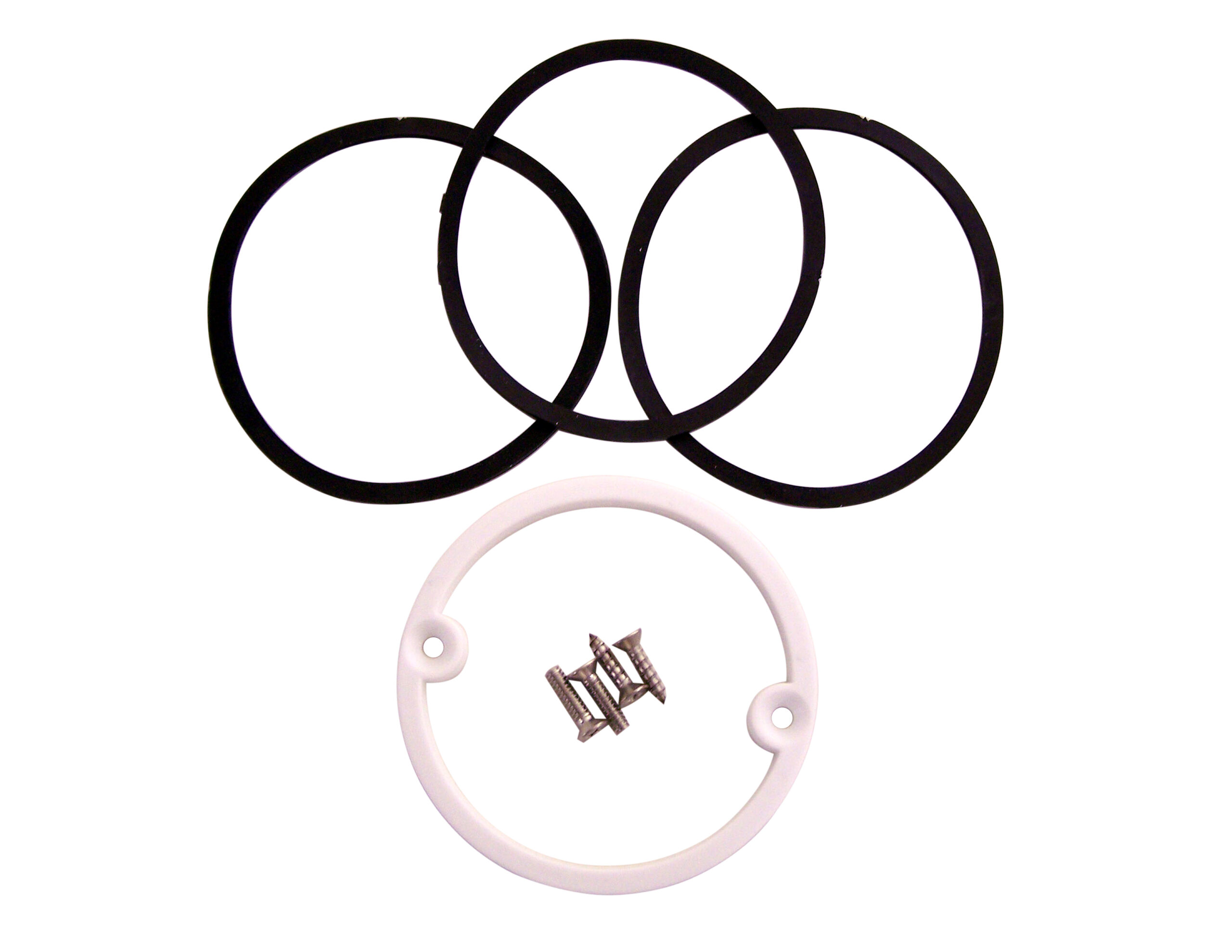

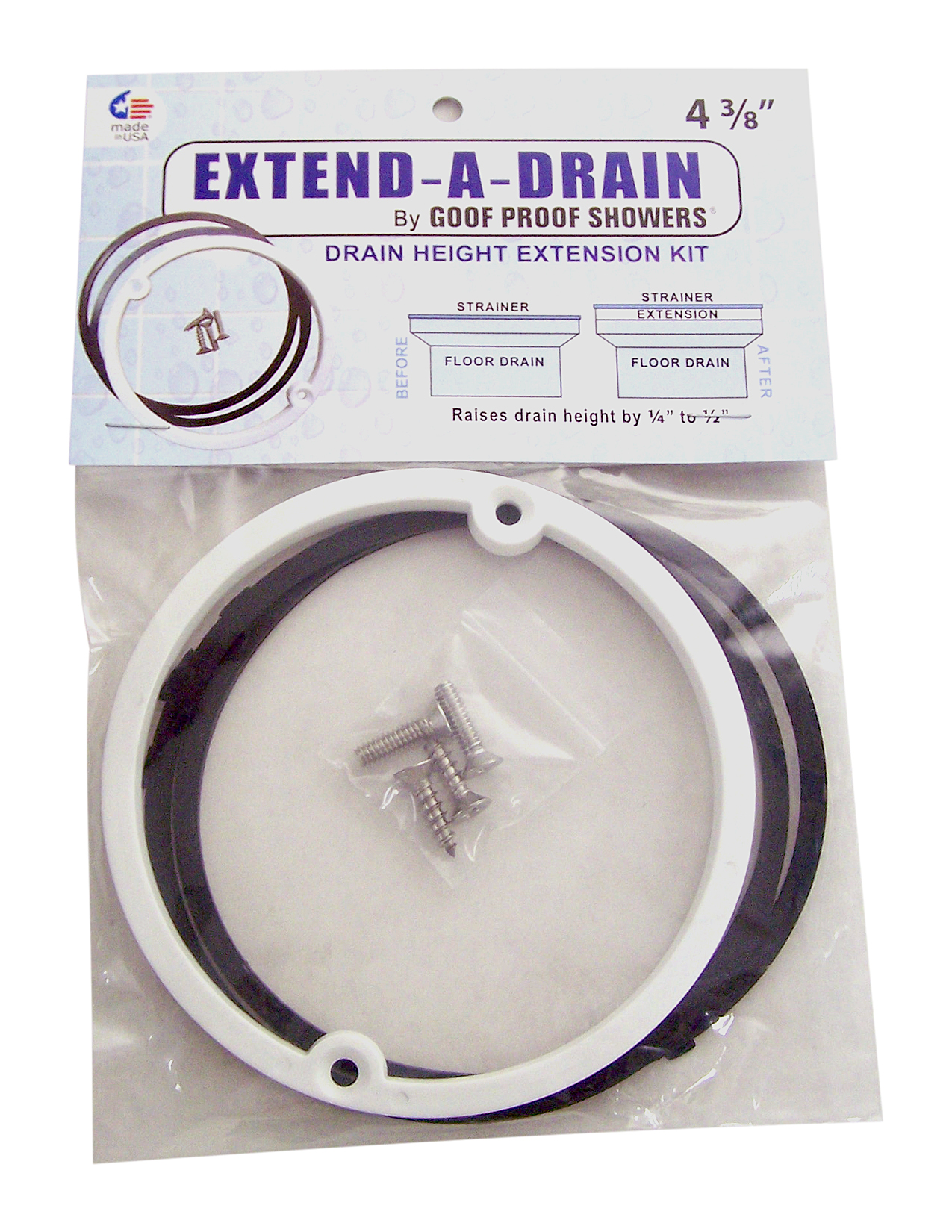

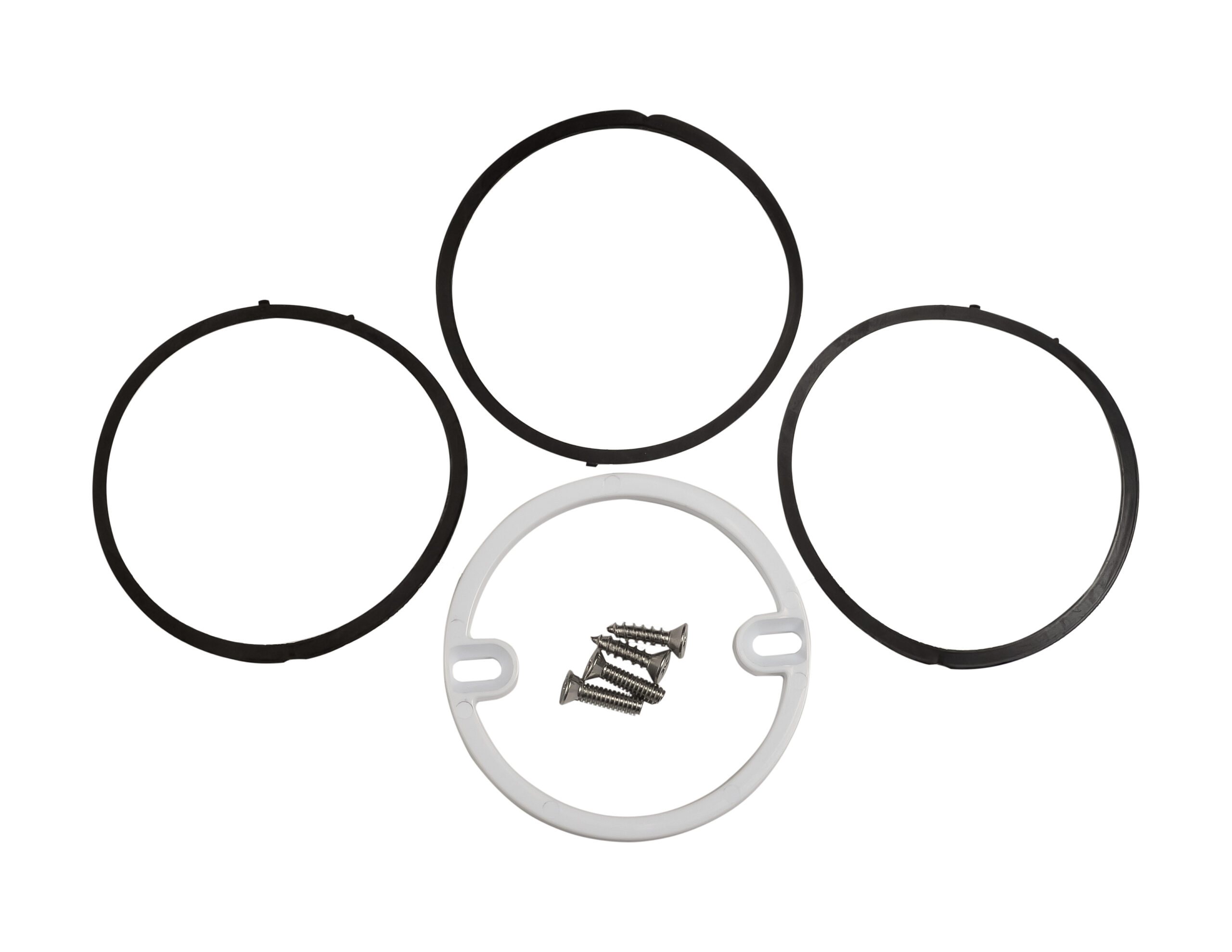

Extend-a-drain

Give your tiled floor a more finished look by raising low drain grates. Kits can be combined for grates that need to be raised more than 1/2 in. The right size matches the distance between the screw holes on your existing drain, so measure between them to choose.

Works with

  • Most drains (2 pairs of screw types included)

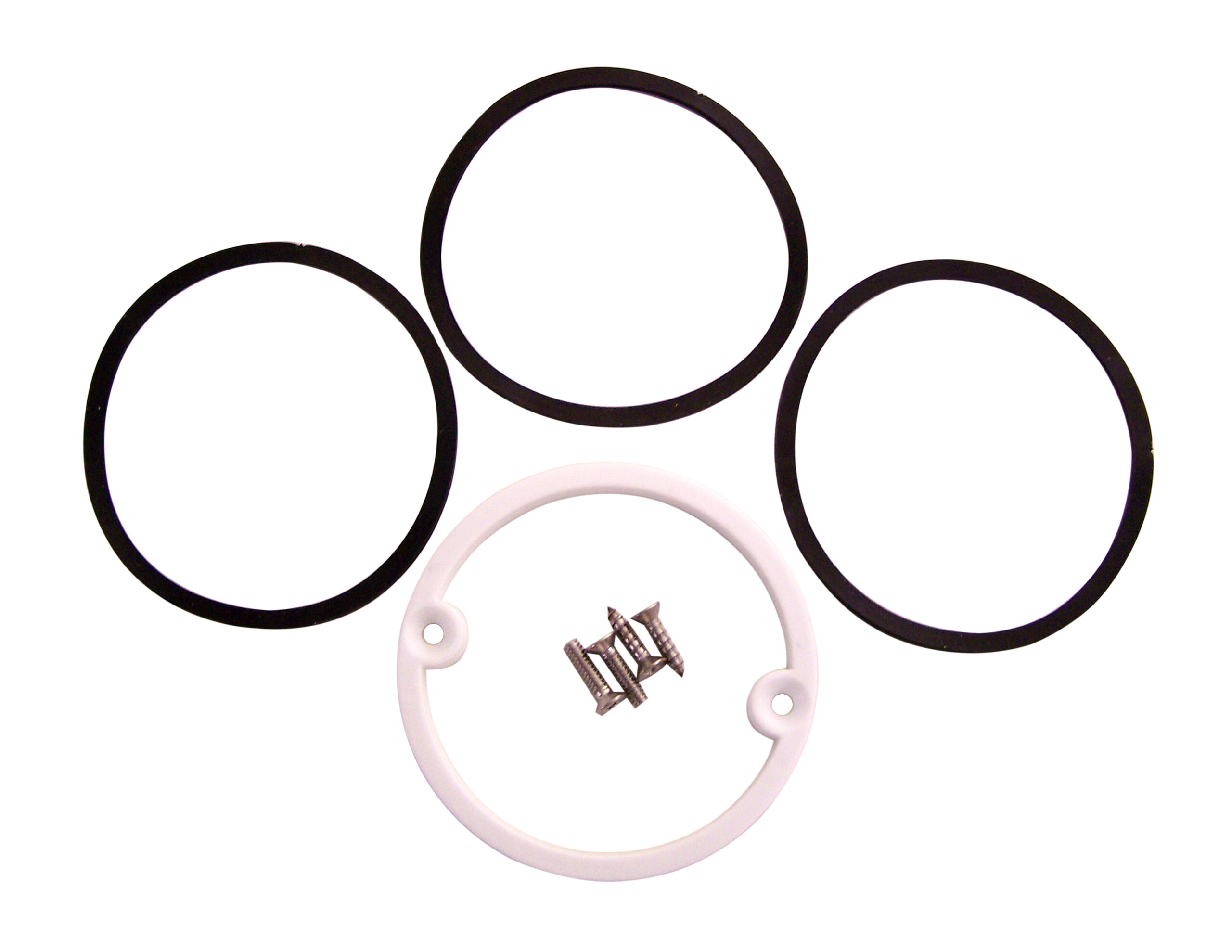

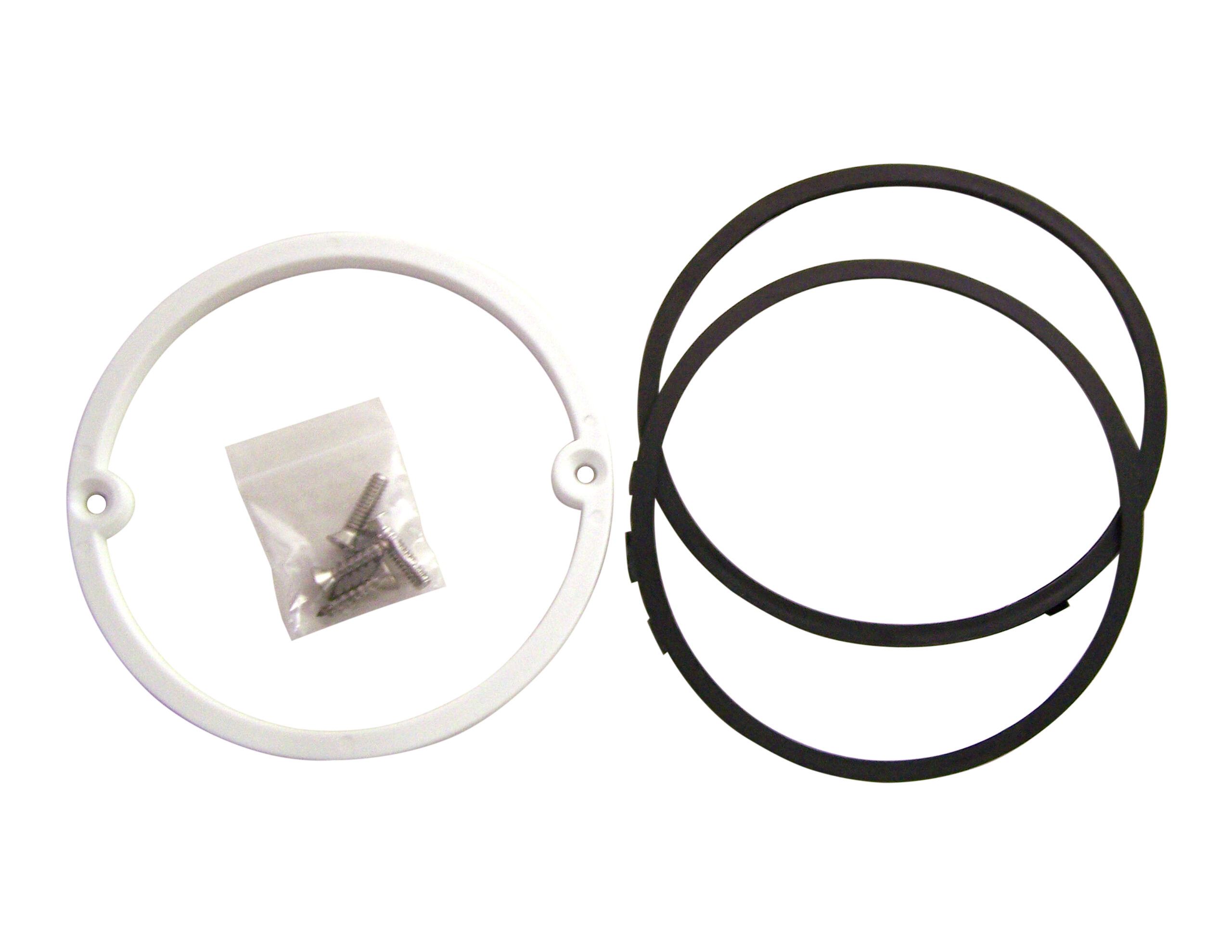

What’s included

  • 1/4 in. thick plastic drain height extension ring
  • Rubber washers
  • 2 pairs of screws in different types

Specifications


TESTING

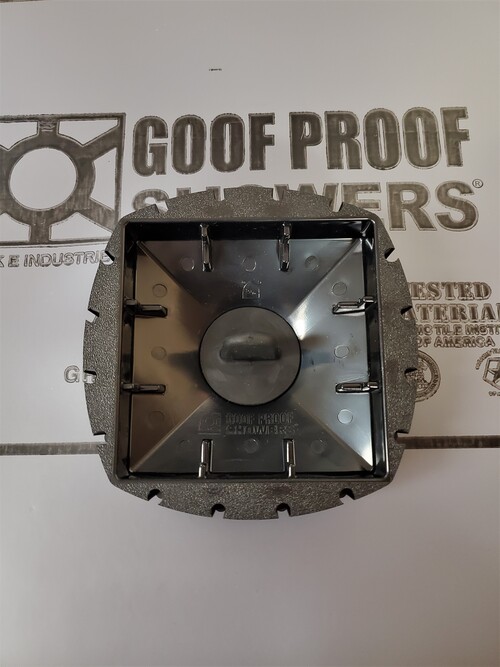

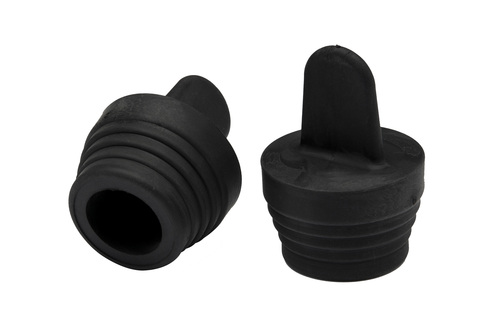

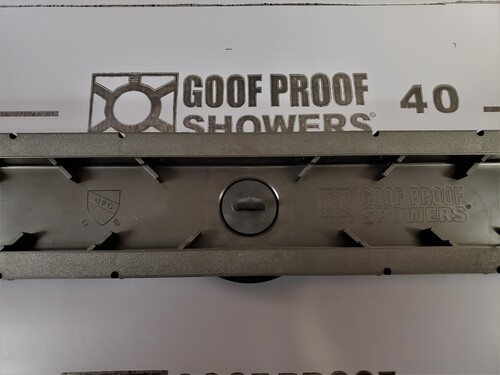

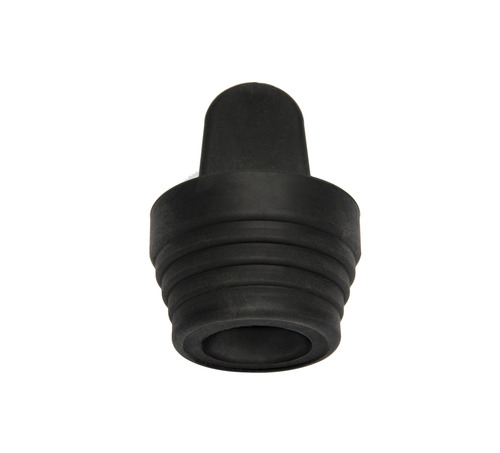

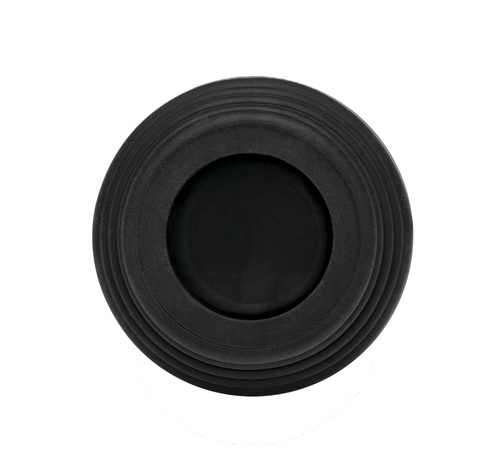

WATER TEST PLUG

Designed for non-pressure water testing of shower pan liners and the shower’s waterproofing. This testing is often mandatory to meet building codes in both remodeling and new construction, residential or commercial.

Key features

  • Reusable
  • Long-life thermoplastic rubber stopper for a leak-free seal
  • No tools required

Works with

  • All standard 2 in. shower drain outlets


DRAIN BASES & FLANGES

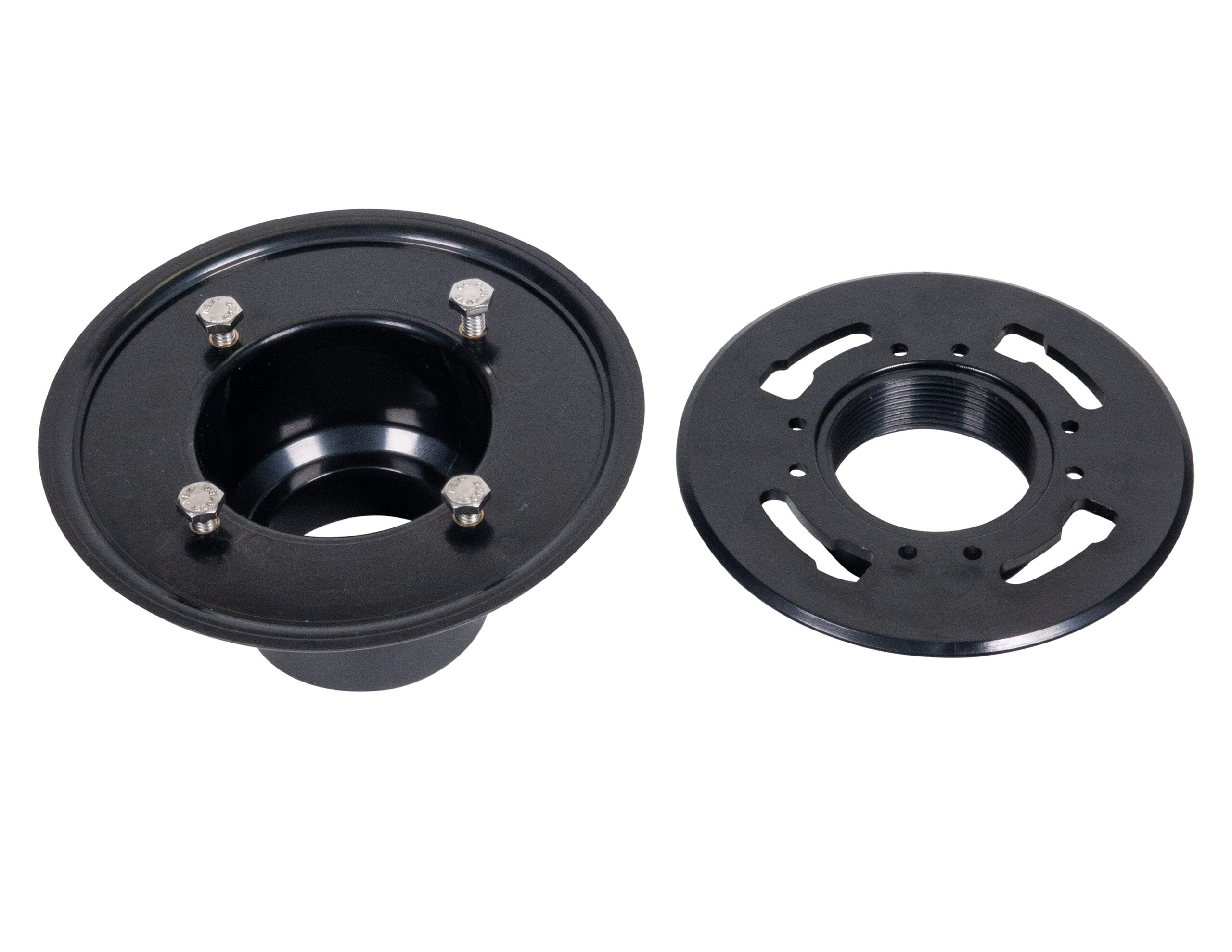

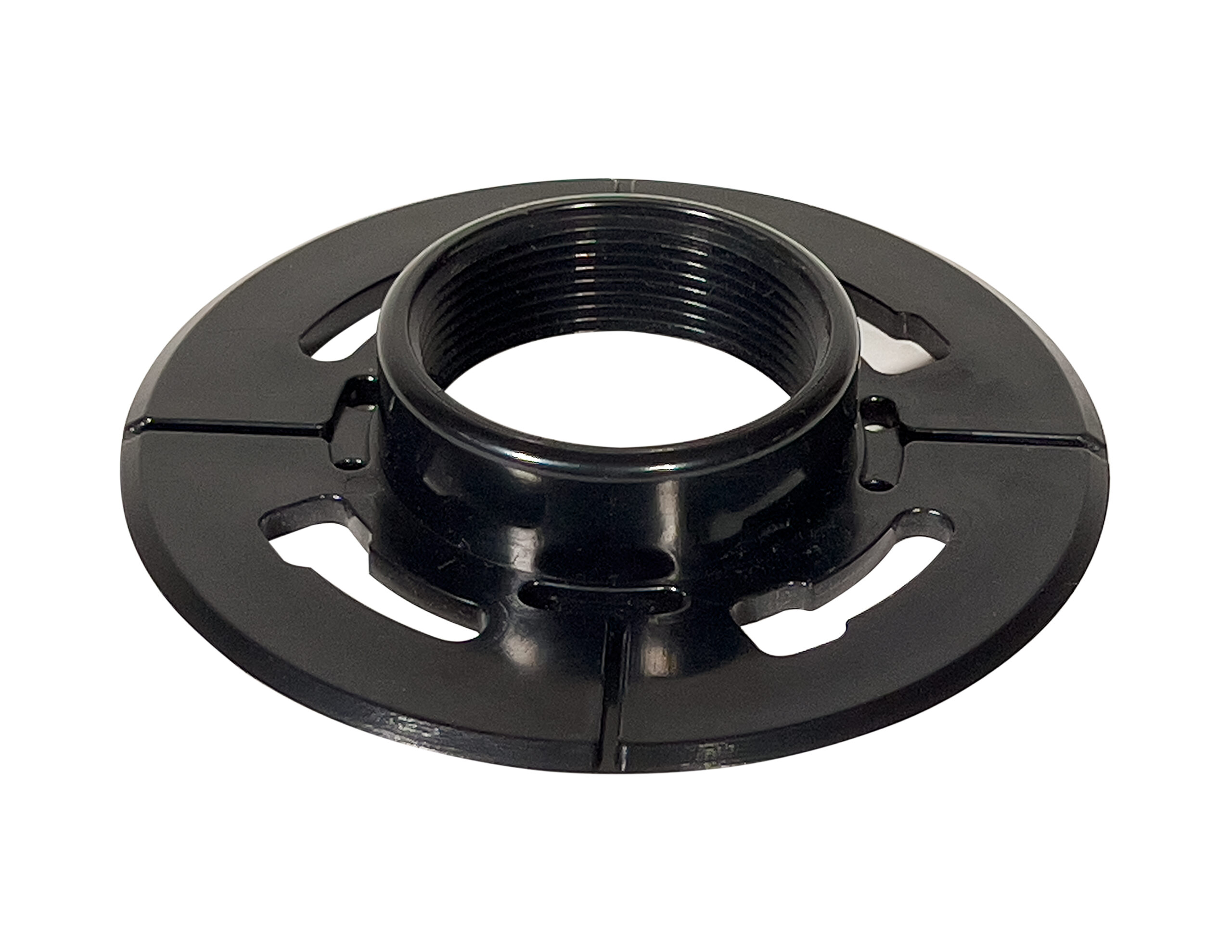

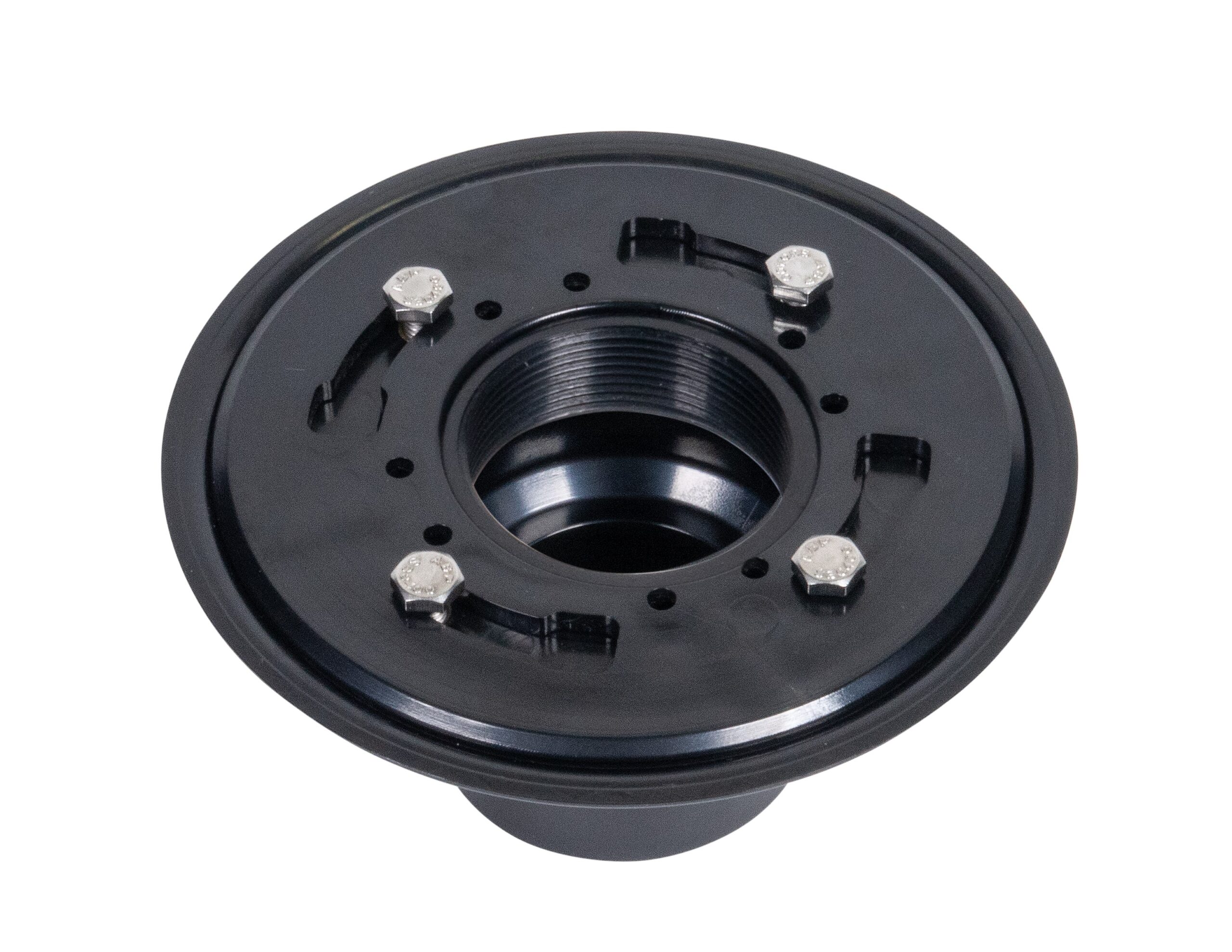

SHOWER DRAIN BASE WITH THREADED CAMPING FLANGE

A substitute drain assembly with a threaded clamping flange that fits most after-market drain risers. Multiple built-in weep holes ensure drainage.

Works with

  • Most after-market drain risers
  • 2 in. (over) or 3 in. (inside) DWV waste pipe

Specifications

  • Center hole: 2 in. inside diameter, threaded
  • Clamping bolt holes: 3¾ in. on center
  • Connection: PVC solvent weld
  • Profile: low

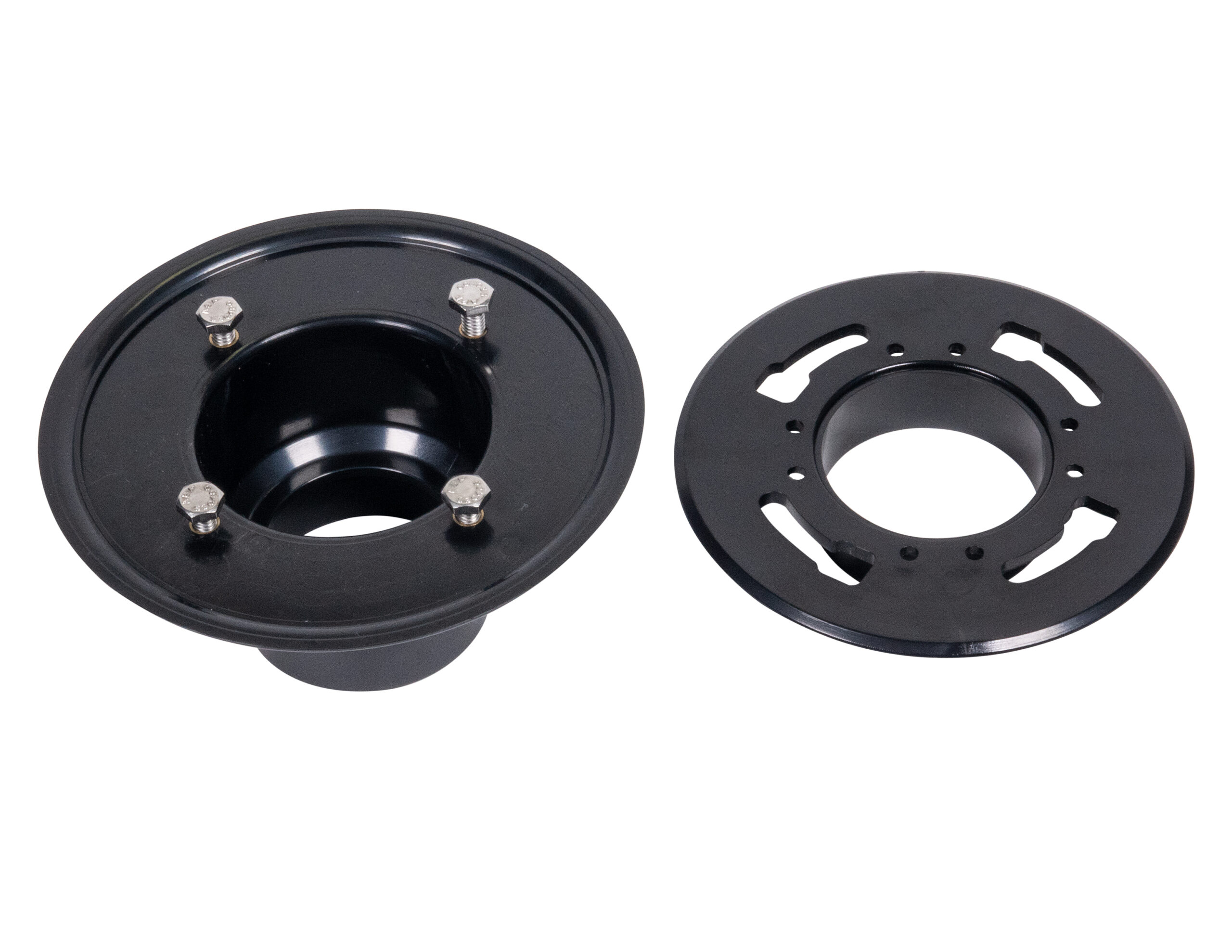

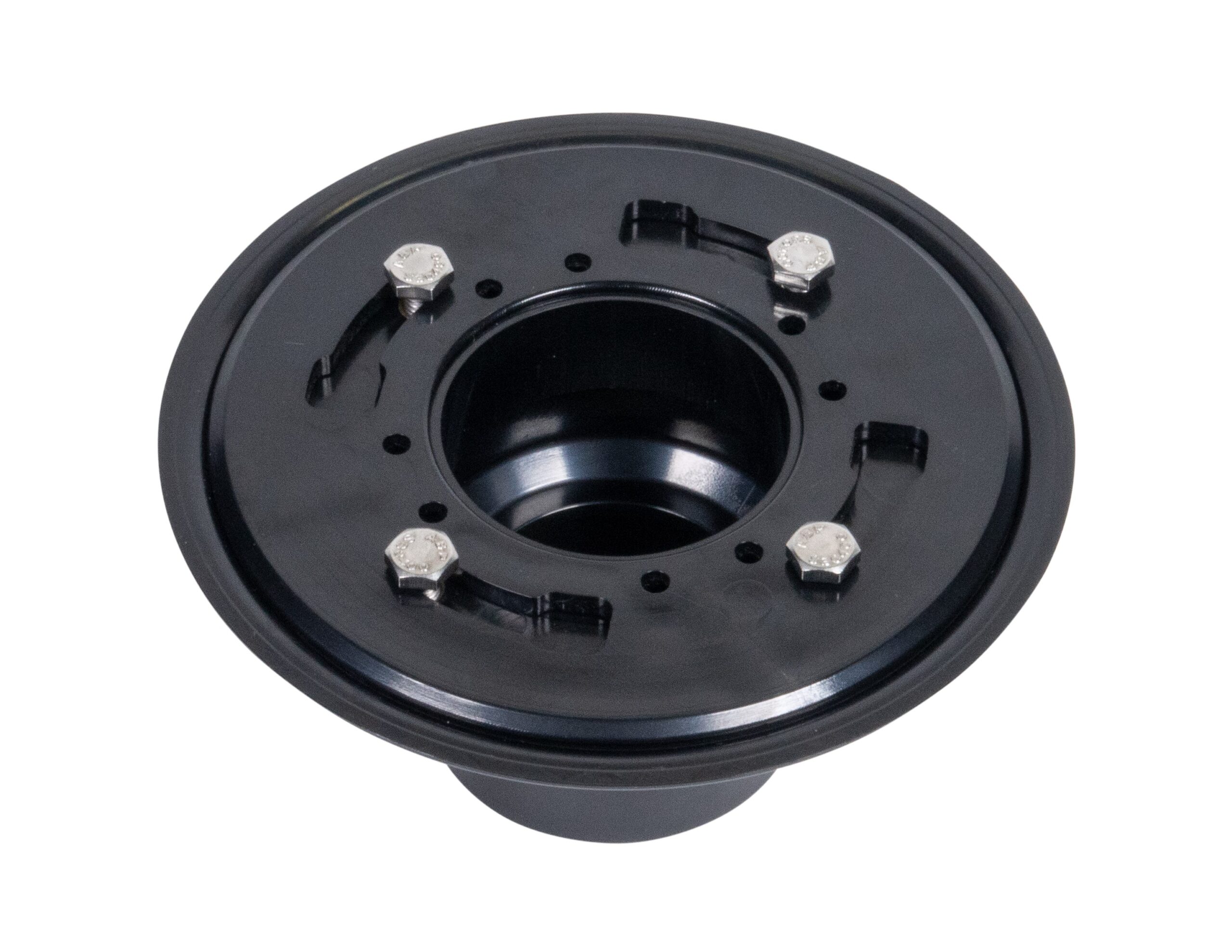

Shower Drain Base with Non-Threaded Clamping Flange

A substitute drain assembly with a non-threaded clamping flange, used for linear drains. Multiple built-in weep holes ensure drainage.

Works with

  • Most linear drain outlets and rubber seals
  • 2 in. (over) or 3 in. (inside) DWV waste pipe

Specifications

  • Center hole: 2 in., slip (non-threaded)
  • Clamping bolt holes: 3¾ in. on center
  • Connection: PVC solvent weld
  • Profile: low

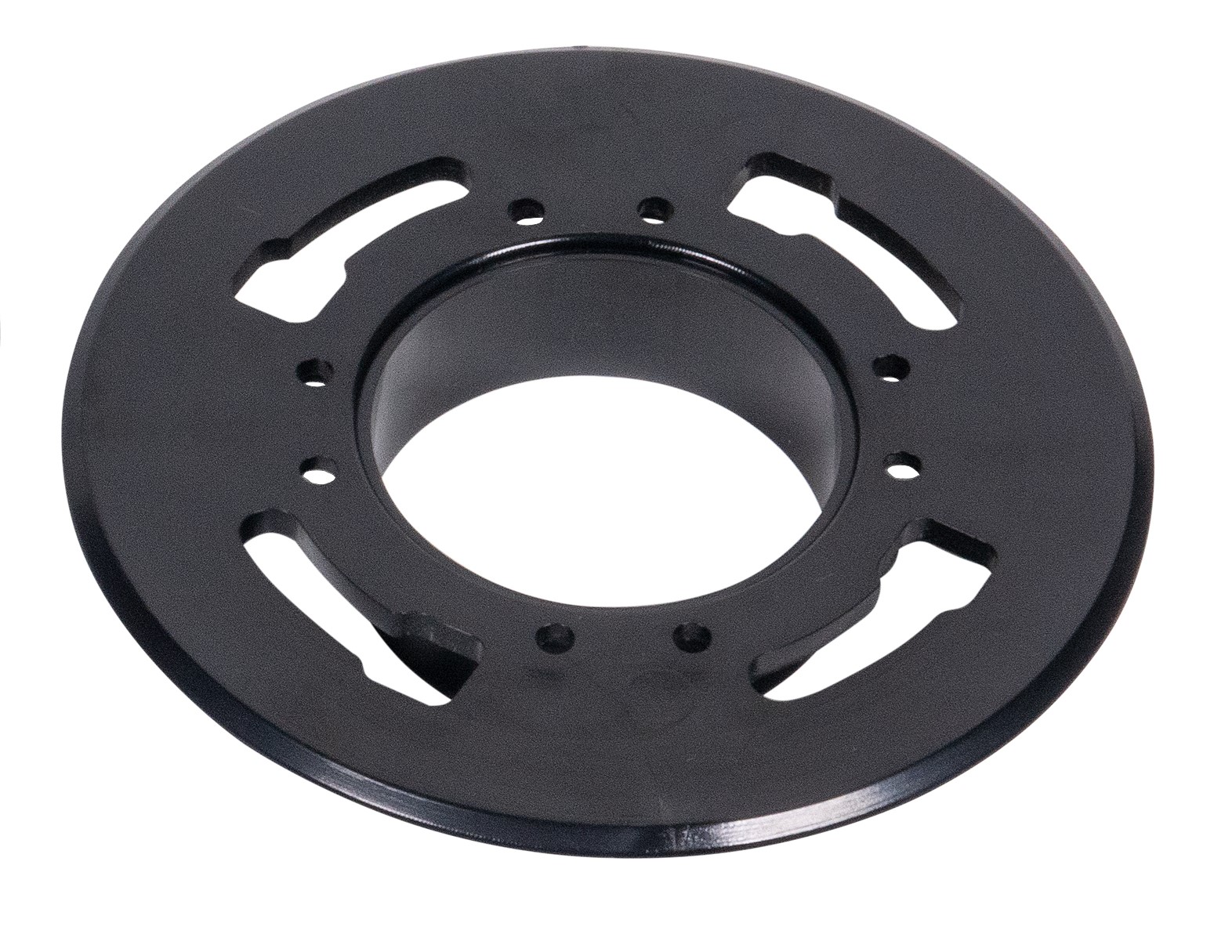

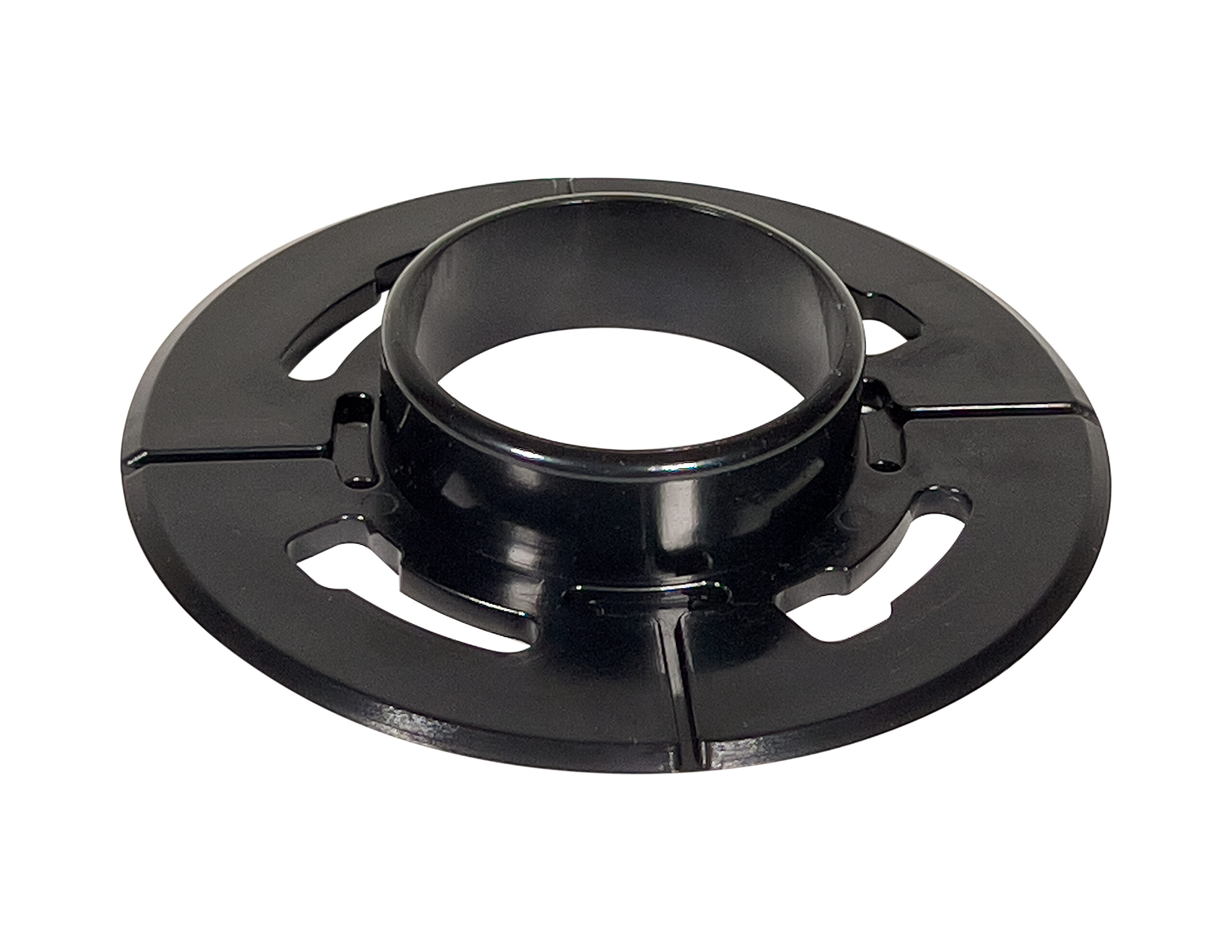

Non-Threaded Clamping Flange

An adaptor that replaces a standard threaded clamping flange, to fit most 2 in. linear drain outlets and their rubber seals.

Works with

  • Most 2 in. linear drain outlets and rubber seals
  • Specifications

    • Center hole: 2 in. inside diameter, non-threaded
    • Clamping bolt holes: 3¾ in. on center

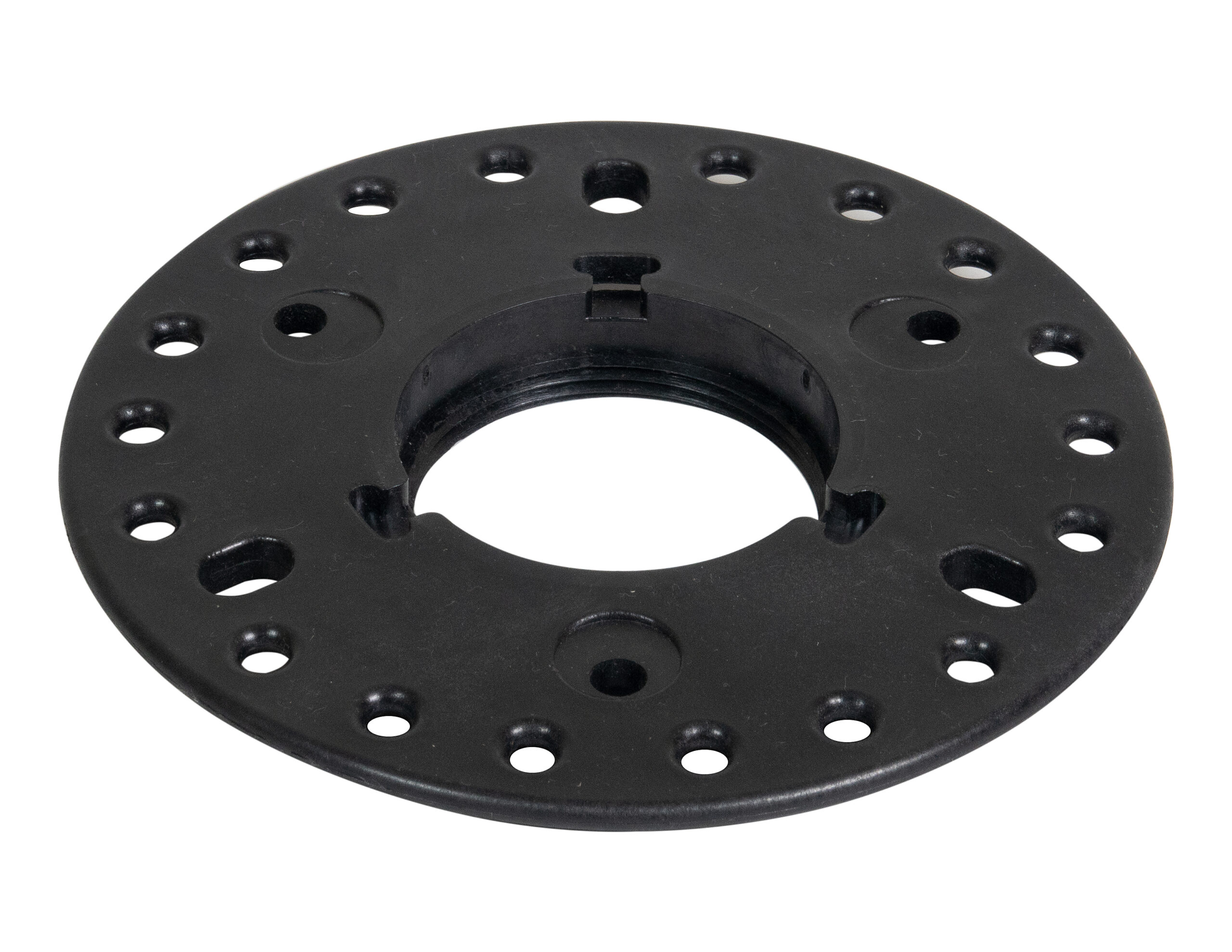

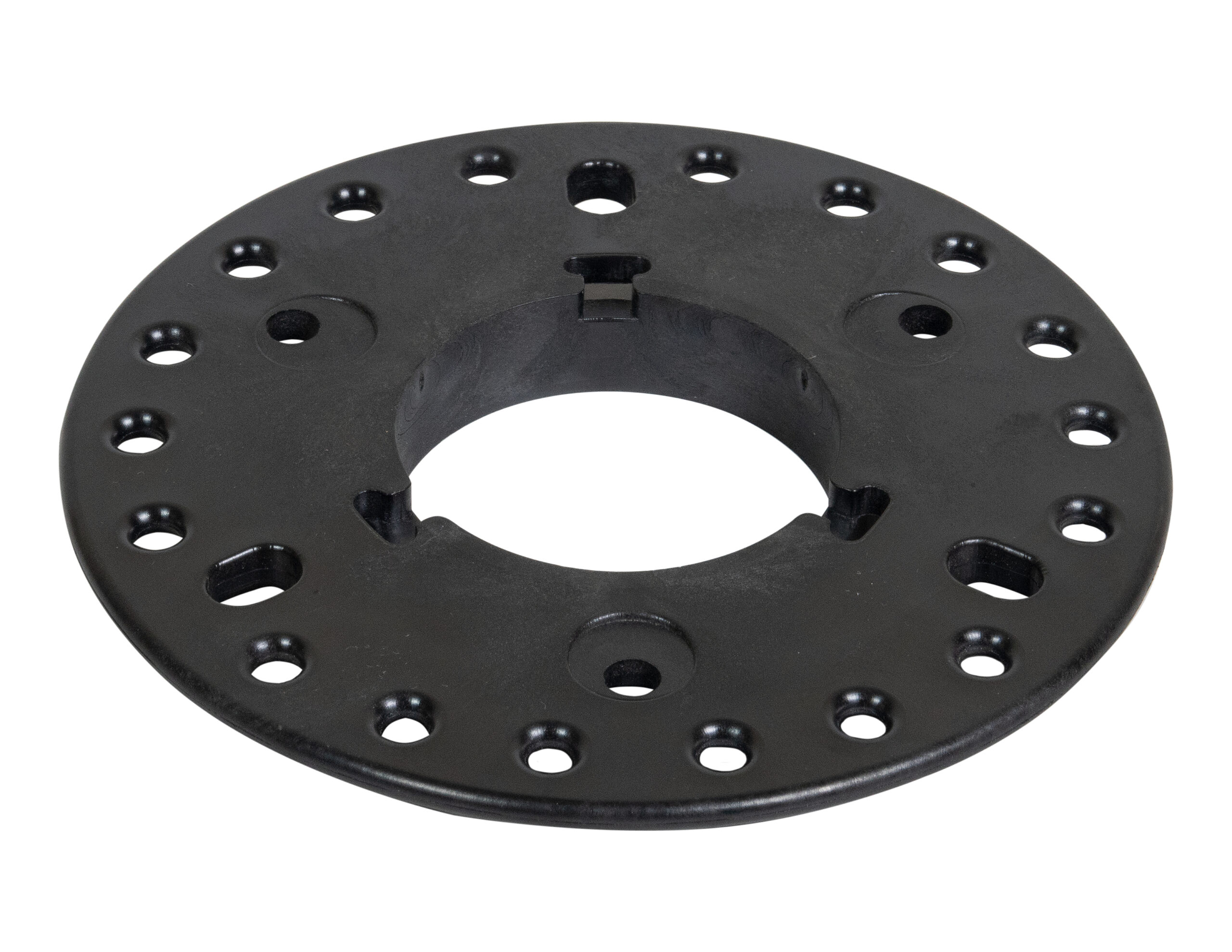

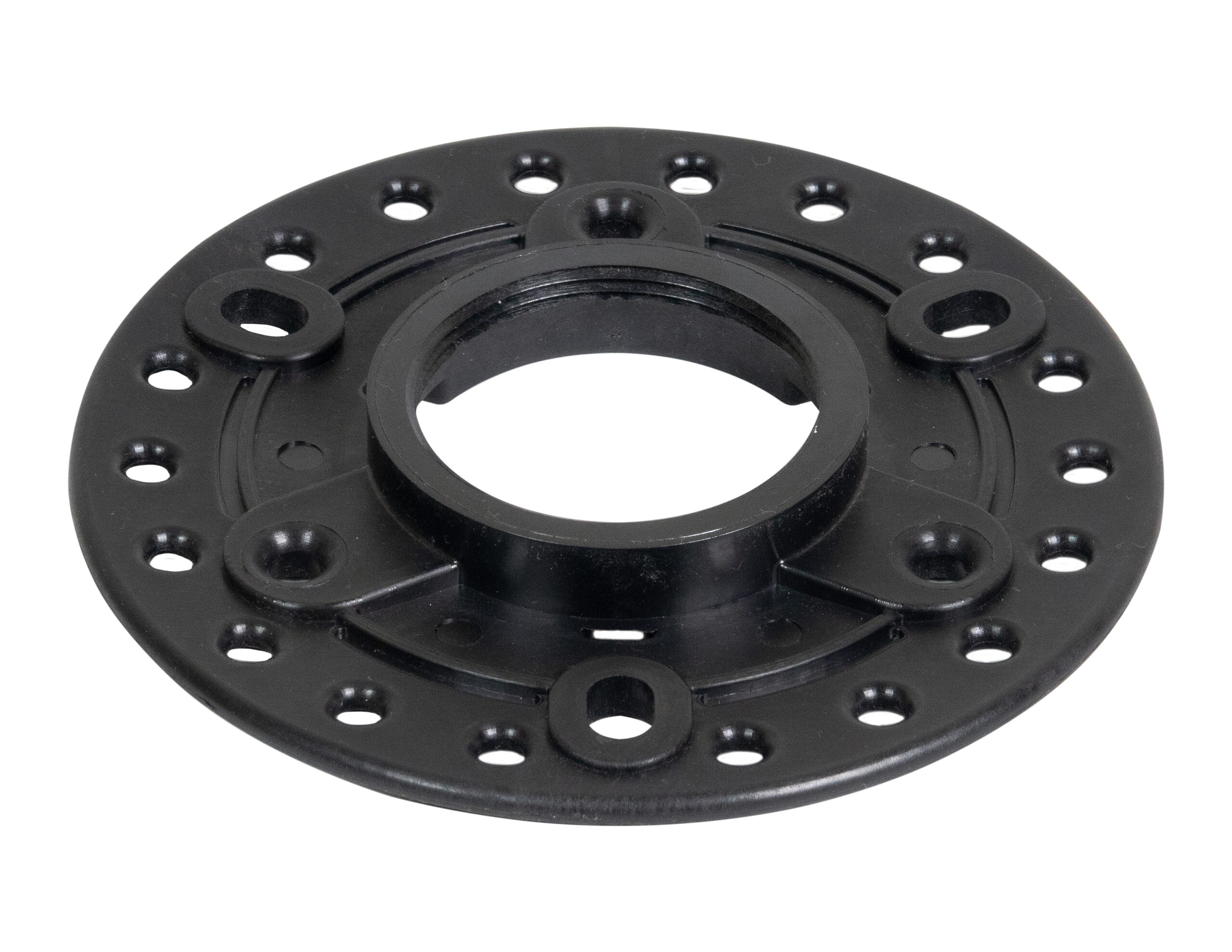

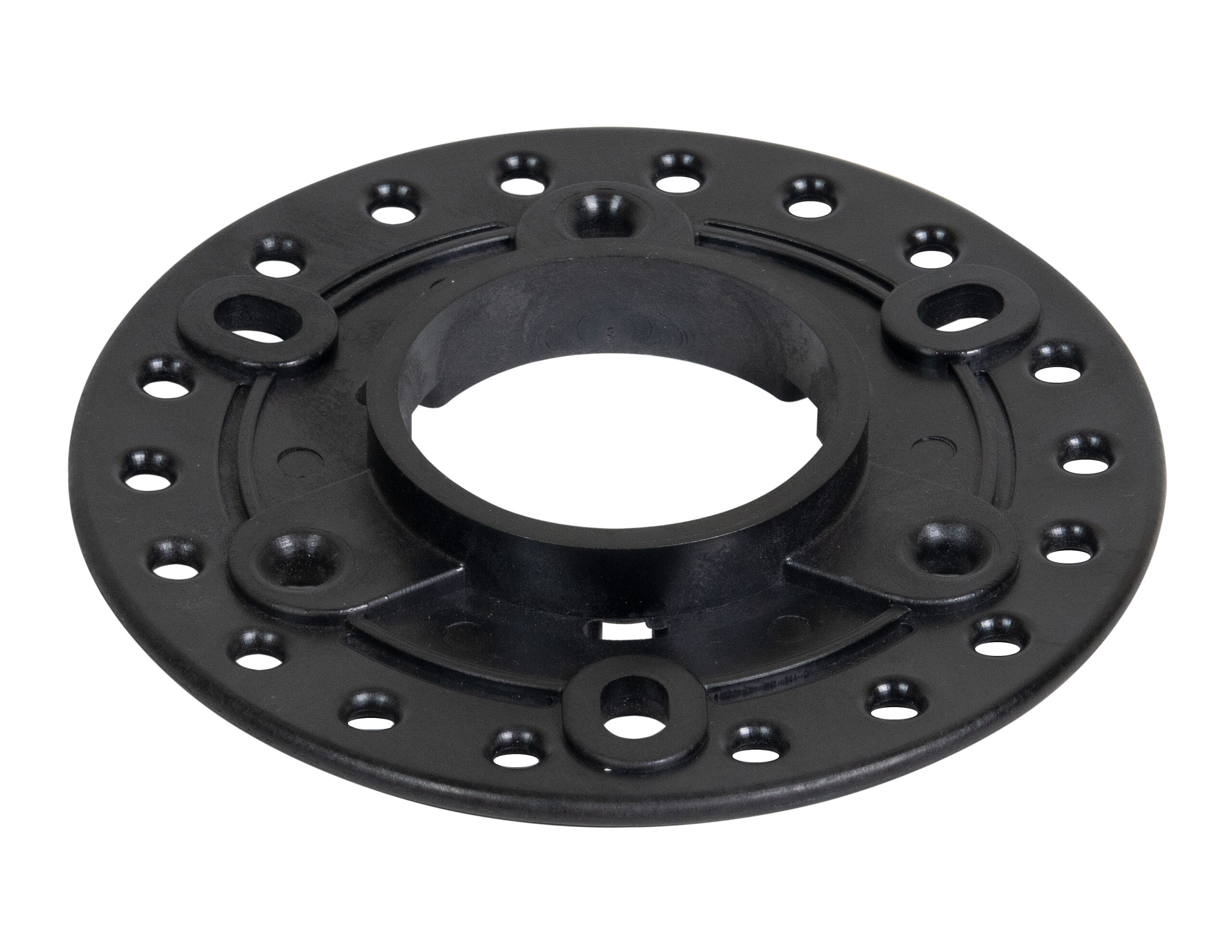

High Heat Clamping Flanges

High heat adaptor rings, a must when using the hot mop method of waterproofing.



Works with

  • Most 2 in. linear drain outlets and rubber seals

Key features

    • Low profile
    • Integrated weep holes
    • Rated to 500 degrees

Works with

  • 2 in. ID Threaded: most cast iron drains, with standard threaded drain risers including Goof Proof Square Drain, Ebbe, Sioux Chief, Oatey, Zurn, ProFlo, Plumbing Products, Jones Stephens, Frank Pattern and more
  • 2 in. ID Non-Threaded: Goof Proof Linear Drains and many other linear drains

Specifications

  • Size: 6 in. OD / 0.60 thickness
  • Material: heavy-duty PPS
